Visual Alert System [VAS]

The Visual Alert System [VAS] is an innovative development which warns pedestrians and MHE in situations of risk by projecting a customisable signal on the ground.

The Visual Alert System [VAS] is an innovative development that warns pedestrians and MHE in situations of risk by projecting a customisable signal on the ground or wall.

WHY USE THE VISUAL ALERT SYSTEM
This system differs from other signage options in that it’s highly effective and visible. Experience shows us that projections on the ground or wall, provide better visibility than those projected above.
They are also better than the commonly used panoramic mirrors since these are often placed too high to be seen and paid attention to. In many cases, these mirrors become part of the landscape of the workspace and operators and pedestrians don’t give them due consideration.

With the VAS Projector that emits a signal a Fixed or Rotational image on the ground or wall, it’s easier to capture a person’s attention. This pedestrian receives a much more direct notification and is easier to detect the warning. The image can be projected all the time or with the addition of some other hardware, triggered to come on when either MHE or a pedestrian is approaching the area.

Depending on the model required, there is a 1m height = Ø 0.3m projection image or a 1m height = Ø 1m projection height.

There are various Projectors available to suit the lighting environment.

AVAILABLE PRODUCTS

    There are ten Projector Models available:

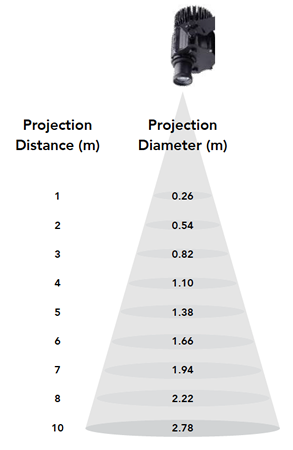

  1. 50W with Fixed Lens – 1m height to ∅0.3m projection image size

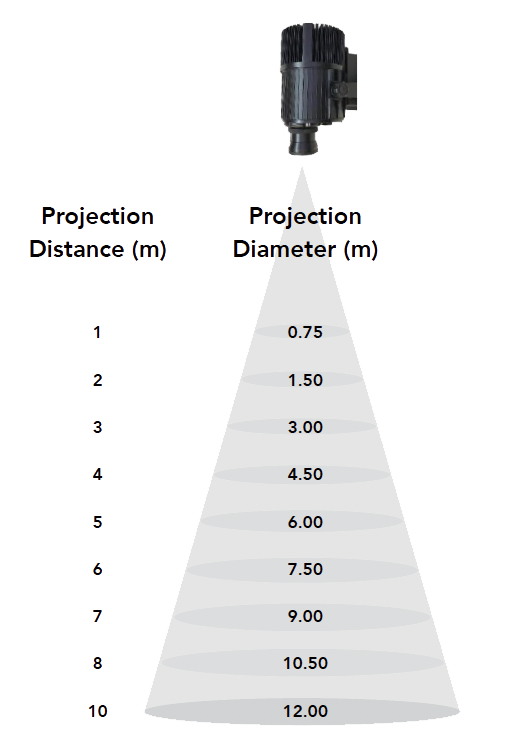

  2. 50W with Rotating Lens (button to stop rotation) – 1m height to ∅0.3m projection image size
  3. 120W with Rotating Lens (button to stop rotation)1m height to ∅0.3m projection image size
  4. 120W with Rotating Lens (button to stop rotation)1m height to ∅0.5m projection image size

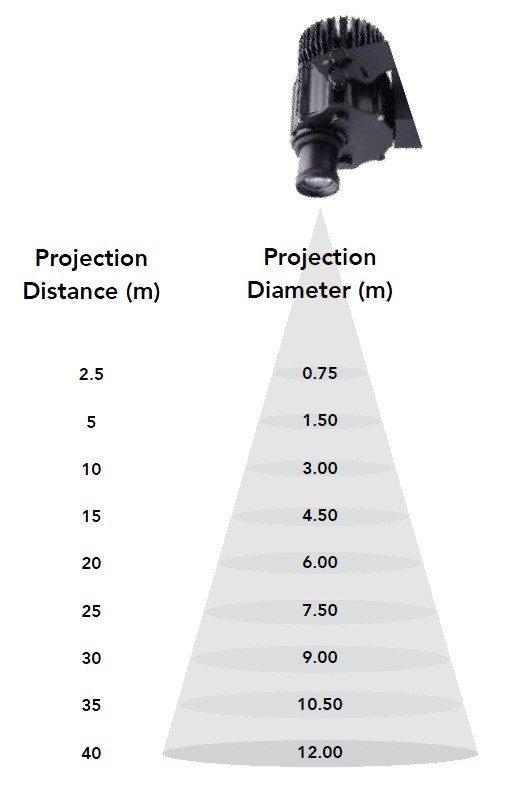

  5. 200W with Rotating Lens (button to stop rotation) – 1m height to ∅0.3m projection
  6. 200W with Rotating Lens (button to stop rotation) – 1m height to ∅0.5m projection

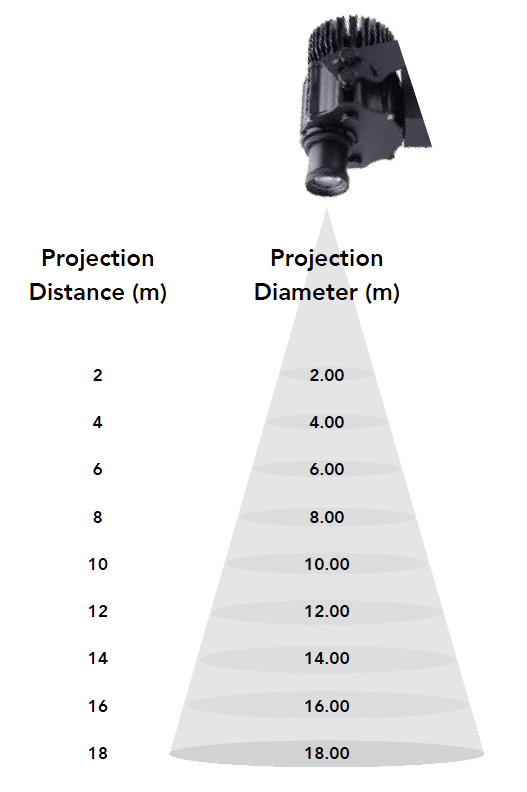

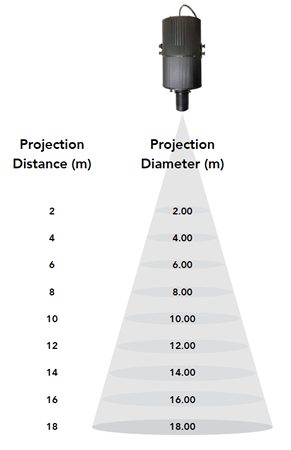

  7. 200W with Rotating Lens (button to stop rotation)- 1m height to ∅1m projection image size
  8. 300W with Rotating Lens (button to stop rotation) – 1m height to ∅0.3m projection
  9. 300W with Rotating Lens (button to stop rotation) – 1m height to ∅0.6m projection
  10. 300W with Rotating Lens (button to stop rotation) – 1m height to ∅1m projection
Projector 50W copy

Visual Alert System

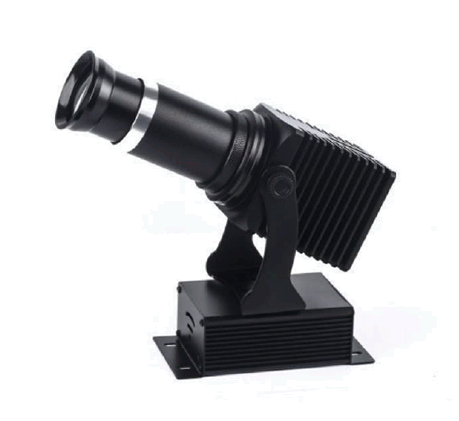

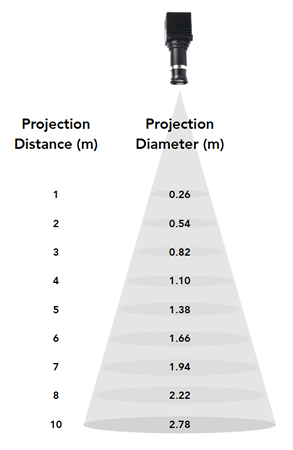

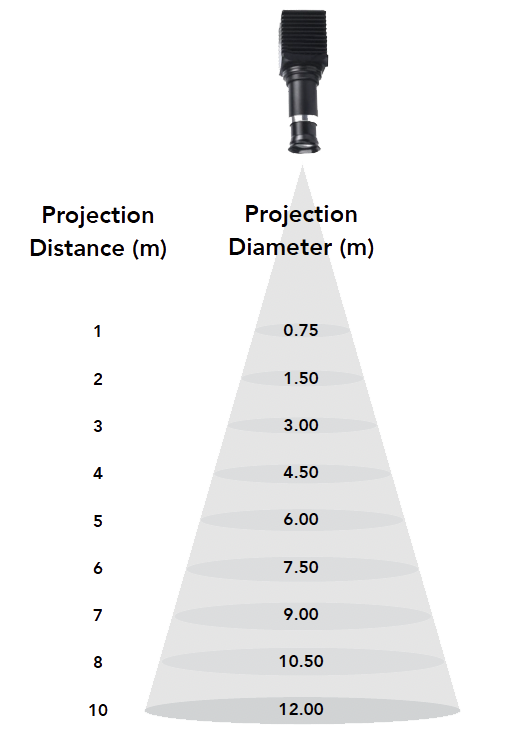

50w Projector (Fixed Lens)

Use for sites that have
low ambient light

0.3 (1m height = Ø 0.3m projection)

Projector 50W Industrial copy

Visual Alert System
50w Projector (Rotating Lens)

Use for sites that have
low ambient light

0.3 (1m height = Ø 0.3m projection)

Projector 120-220w new copy

Visual Alert System

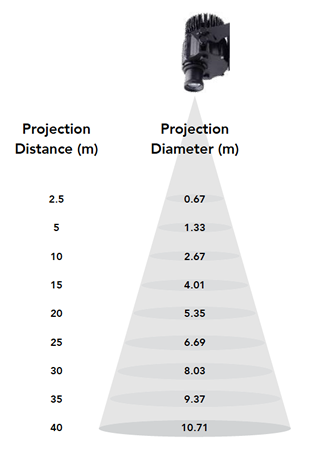

120w Projector (Rotating Lens)

Use for warehouses or production plants with lots of lighting.

0.3 (1m height = Ø 0.3m projection)

Projector 120-220w new copy

Visual Alert System
120w Projector (Rotating Lens)

Use for warehouses or production plants with lots of lighting.

0.5 (1m height = Ø 0.5m projection)

Projector 120-220w new copy

Visual Alert System
200w Projector (Rotating Lens)

Use for warehouses or production plants with lots of lighting.

0.3 (1m height = Ø 0.3m projection)

Projector 120-220w new copy

Visual Alert System
200w Projector (Rotating Lens)

Use for warehouses or production plants with lots of lighting.

0.5 (1m height = Ø 0.5m projection)

Projector 120-220w new copy

Visual Alert System
200w Projector (Rotating Lens)

Use for warehouses or production plants with lots of lighting.

1.0 (1m height = Ø 1.0m projection)

VAS 300W Projector copy

Visual Alert System
300w Projector (Rotating Lens)

Use for warehouses or production plants with lots of lighting.

0.3 (1m height = Ø 0.3m projection)

VAS 300W Projector copy

Visual Alert System
300w Projector (Rotating Lens)

Use for warehouses or production plants with lots of lighting.

0.6 (1m height = Ø 0.6m projection)

VAS 300W Projector copy

Visual Alert System
300w Projector (Rotating Lens)

Use for warehouses or production plants with lots of lighting.

1.0 (1m height = Ø 1.0m projection)

PROJECTOR IMAGES

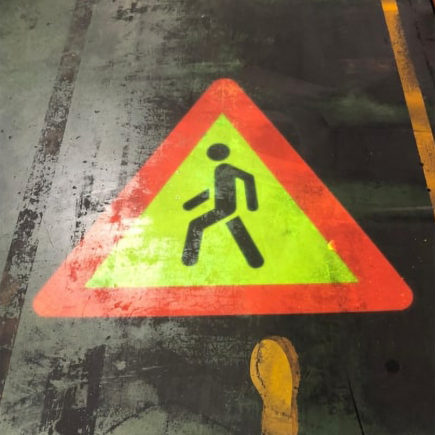

The projector has the option to have 1 to 3 different colour lenses to project 1 to 3 colour symbols on the ground.. The projected symbols are customisable.

This system only involves placing the projector in the position a distance above which you want the image to display. The image will be displayed in the size based on the height mounted for each projector type.

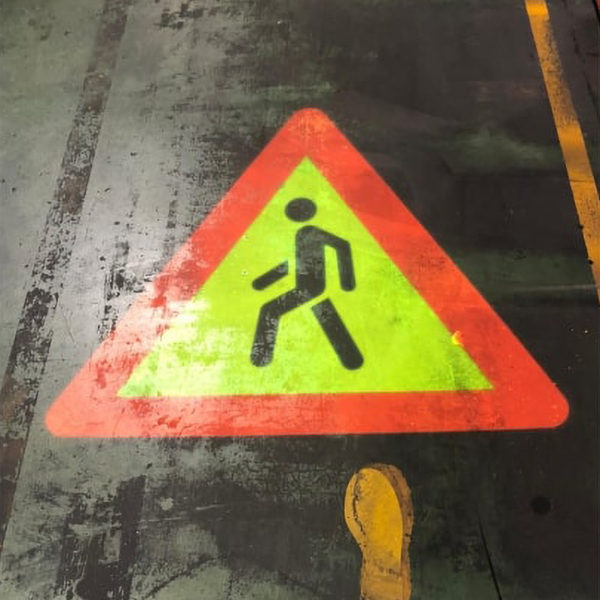

Some examples of what can be projected are a forklift sign, pedestrian signs, a STOP warning, a pedestrian crossing, a speed limit sign, a “no smoking” sign or a signal indicating that the use of mobile phones is prohibited. There are many other options available.

AUTOMATE THE PROJECTOR USING PAS OR CAS-G2

The system can be combined with the ShockWatch Pedestrian Alert System (PAS) which can be used to both warn drivers when a person is detected at settable distances of 1 to 6.5 metres as well as trigger the VAS at any location required or alternatively with the Collision Avoidance System (CAS-G2).

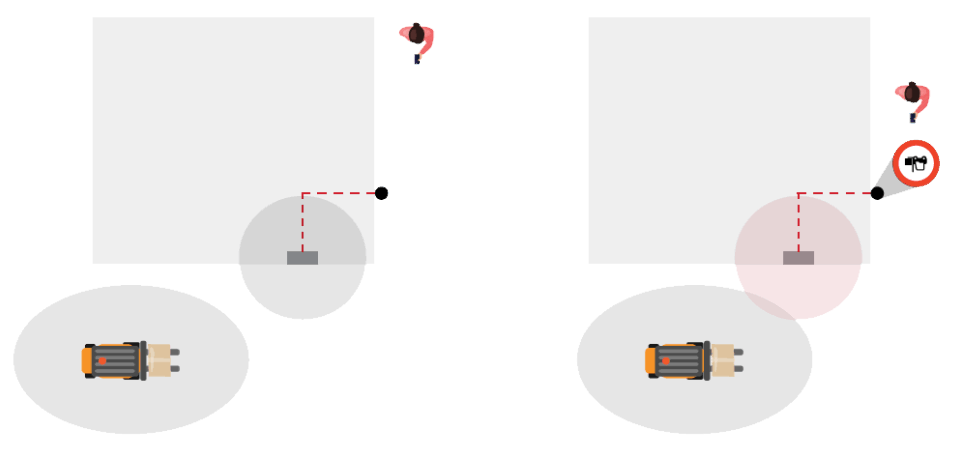

System Components

  • All forklifts are fitted with the Pedestrian Alert System (PAS)
  • A TZ2tag is fitted to the wall or racking to detect oncoming forklift
  • Control Box
  • Light/Buzzer

Main Operating Characteristics

  • When a forklift comes into range of the TZ2 tag, the Projector will turn on and display the image to alert pedestrians or other forklifts of oncoming forklift
  • Detection range up to 7m
  • More than one TZ2 tag could be used for earlier notification

APPLICATIONS

  • Warehouses
  • Logistics centres
  • Production areas
  • Spaces separating production areas from offices
  • Corridors and transit areas in industrial spaces
  • Blind spots in work spaces

BENEFITS

  • Customisation according to the needs of each client
  • Simple installation – it only involves placing the projector in the location where you want the signal to be seen
  • Image is easy to see
  • Does not wear out
  • Can be turned on and off
  • Projected signs can be changed
  • Product durability of the projectors
  • Very visible
  • Attract attention
  • Can also be combined with the PAS System to trigger the projector to turn on when approaching a designated area.

VIDEO

Toyota combined Claitec’s PAS and VAS Systems to solve a need developed by OEZ Letohrad of the Siemens group in Europe, which produces automatic compact switches for customers around the world. In this case, Toyota evaluated the occupational safety threats present in the mentioned firm and offered a solution to avoid the risk of possible collisions between loading equipment and employees in unsafe places and areas with high volume of traffic, such as crossings and corridors.

SYSTEM EXTENSIONS

Pedestrian Alert System
(PAS)

Collision Avoidance System
(CAS-G2)

Blind Spot System
(BSS)

Low Speed Area
(LSA)

Specs



VAS Projector 50W Specifications
Dimensions
280 mm x 180 mm x 80 mm
Material
Aluminium
Weight
2kg
IP Protection
IP 65
Power Supply
85-265V
Frequency
50/60Hz
Image Rotation
Fixed and Rotation Models (button to stop rotation) available
Light whole power
50w
Lumens
3500 Lumens
Projection Ratio
0.3 (1m height = ∅0,3m projection)
Hours of Continuous Operation
Fixed Model – No longer than 12 continuous hours.
Rotation Model – 24 hours
LED rated lifetime
30.000h
Tª Operating
De -20ºC to +65ºC



VAS Projector 120W Specifications
Dimensions
270mm x 170mm x 260 mm
Material
Aluminium
Weight
3.5kg
IP protection
IP 65
Power Supply
85-265V
Frequency
50/60Hz
Image Rotation
Yes (button to stop rotation)
Light whole power
120w
Lumens
12000 Lumens
Projection Ratio
0.3 (1m height = ∅0,3m projection)
Hours of Continuous Operation
24 hours
LED rated lifetime
30.000h
Tª Operating
De -20ºC to +65ºC



VAS Projector 200W Specifications
Dimensions
270mm x 170mm x 260 mm
Material
Aluminium
Weight
4.8kg
IP protection
IP 65
Power Supply
85-265V
Frequency
50/60Hz
Image Rotation
Yes (button to stop rotation)
Light whole power
200w
Lumens
24000 Lumens
Projection Ratio
0.3 (1m height = ∅0,3m projection) and 1.0 (1m height = ∅1m projection)
Hours of Continuous Operation
24 hours
LED rated lifetime
30.000h
Tª Operating
De -20ºC to +65ºC
