Rear View Camera System (IVIEW)

The Rear View Camera System (IVIEW) helps minimise accidents in fast-paced workplace environments between vehicles, pedestrians and objects.

The ShockWatch Rear View Camera System (IVIEW) by KIGIS is a detection system that helps minimise accidents in fast-paced workplace environments between vehicles, pedestrians and objects.
The camera system installed in the rear of the vehicle detect objects or pedestrians located within the warning area. The monitor provides a visual alert for the driver of any potential hazard.
An optional Ultrasonic Proximity Alert System (USENS) can be integrated to provide an additional audible aid.

SYSTEM COMPONENTS

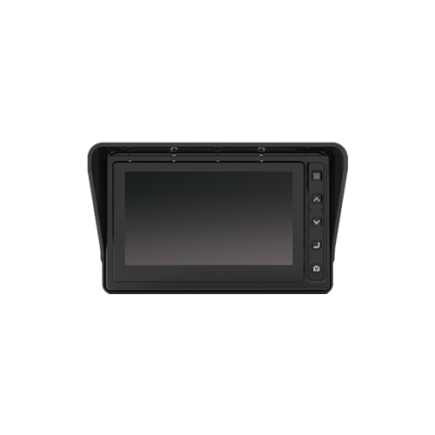

Monitor

The IVIEW Monitor will show the operator of any obstructions at the rear of the vehicle from the IVIEW Camera. It can be also setup to only be used with the vehicle is reversing. When used with our USENS product, a range circle on the screen will be shown.

  • – Video System: NTSC/PAL (Auto Detection)
  • – Video Input: Composite Video (CVBS) 75Ω 1Vp-p
  • – Camera Input : Upto 3 Channel
  • – Camera mode on/off : Rear direction auto detection
  • – Auto Dimer : On/Off Selectable
  • – OSD Display : 2 Language (Korean / English)

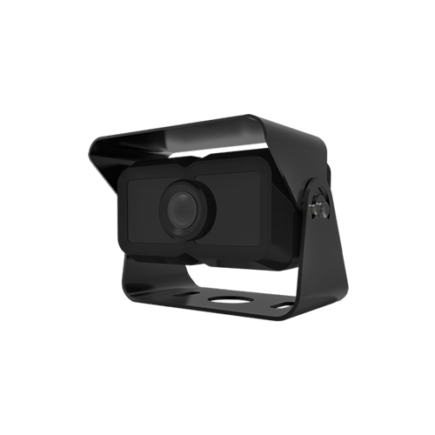

Camera

The IVIEW Camera will show obstacles at the rear of  the vehicle on the IVIEW Monitor.

  • – Image Sensor Size : 1/3″ Sony CCD II
  • – Picture Element : 39K Pixels (NTSC), 41K Pixels (PAL)
  • – Lens : F=2.0
  • – View Angle(D) : 120.3˚
  • – Frame Per Second : 30fps
  • – Night Vision : 9 IR-LED built in with Ambient Light Sensor
  • – Operating Voltage : DC 7V~34V
  • – Operating Temperature : Z
  • – Waterproof : IP69K
  • – Dimension (W*H*D) : 79(W) X 44(H) X 44(D)mm
  • – Weight : 217g(Camera only)
  • – Case Material : Aluminum
  • – Video Out: NTSC

Optional Accessories

Controller

The Controller has a sound and LED light alarm for the driver when a nearby obstacle is detected by the ultrasonic sensor.

Sensor

Ultrasonic Sensor used to detect obstacles located near the vehicle.

Speaker

Optional Speaker provides voice alerts.

RELATED PRODUCTS

USENS

IPAS

Specs

Camera

Screen Size
7” TFT 16:9 Wide
Resolution
800 x 480
Colour Depth
16.8M (24bit True Colour)
Operating Voltage
9-32VDC
Operating Temperature
-30ºC ~ 85ºC
Dimensions (WxHxD)
209mm x 128mm x 35mm
Waterproof
IP67
Buttons
5 Buttons with LED Backlight
Video System
NTSC
Video Input
Composite Video (CVBS) 75 Ohm 1Vp-p



Monitor

Image Sensor Colour
CCD Image Sensor 520,000 pixels
View Angle
120º
Frames Per Second
30
Night Vision
9 IR-LED built-in with Ambient Light Sensor
Operating Voltage
7~34VDC (12V/24V Free Voltage)
Operating Temperature
-30ºC – 85ºC
Dimensions (WxHxD)
79mm x 44mm x 44mm
Waterproof
IP69K
Case Material
Aluminium
Video Input
NTSC
