Advanced Pedestrian Detection Camera System (IVIEW+)

Our Advanced Pedestrian Detection Camera System (IVIEW+) is a safety assistance system that prevents accidents between pedestrians and vehicles at any industrial site. IVIEW+ adopts the advanced AI (Artificial Intelligence) technology for pedestrian detection in real-time. The driver gets a visible alert with a warning sound/message to prevent any accident in the workplace.

Our Advanced Pedestrian Detection Camera System (IVIEW+) is a safety assistance system that prevents accidents between pedestrians and vehicles at any industrial site. IVIEW+ adopts advanced AI (Artificial Intelligence) technology for pedestrian subject detection in real-time. The driver gets a visible alert with a warning sound/message to prevent any accident in the workplace.

KEY FEATURES
  • Artificial Intelligence human subject detection technology
  • Professional camera system with high resolution for a clear view
  • Rugged, water-resistant industrial design (IP69K)
  • Multiple setting for split screen and camera loop
  • External siren with voice message alarm supports
  • Quick and simple installation
  • Dash Cam recording with addition of a MIcro SD card up to 128GB

Simple and Intuitive Interface

With the Al-based technology when IVIEW+ detects the subject, both the LCD screen and LED lamp flash along with the acoustic alarm sounds.

Normal View

When the power is turned on, the display shows real-time video through the camera.

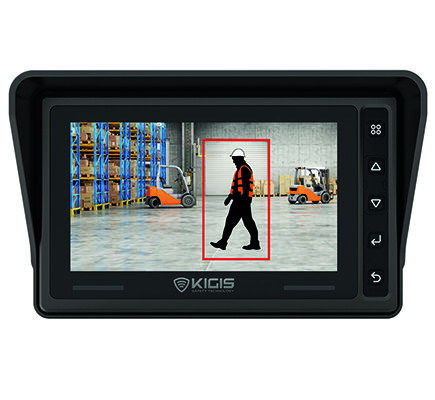

Subject Detected

When the pedestrian is detected, a red-box appears around the subject.

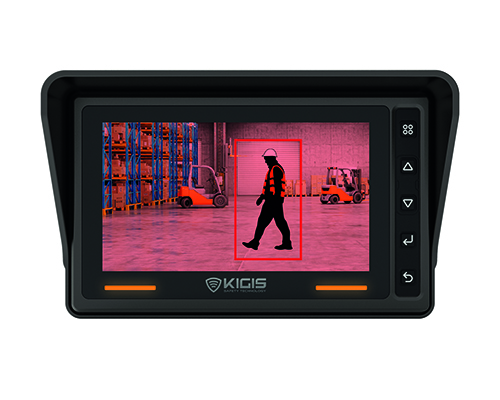

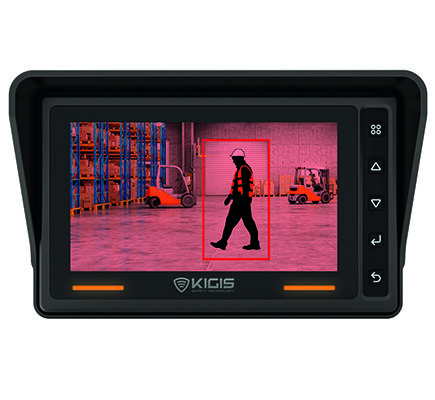

LED/LCD Alert

When the pedestrian is detected within the alarm range set, both the LCD screen and the LED lamp flash along with the acoustic alarm.

Optional Accessories

IPAS EOD

External Output Device (EOD)

Provides a connection to external devices such as a light/buzzer or speed limiter through the EOD relays.

KIGIS USENS Speaker2

Amp/Speaker

Optional Amp/Speaker to provide voice alerts.

Where To Use

Warehouses, factories, construction sites, mining sites and shipping ports are confronted with safety issues daily.
IVIEW+ is suitable with all kinds of industrial vehicles (forklifts, excavators, wheel loaders, tractors)

Warehouses/Factories

Mining

Construction

Shipping

Product Video

RELATED PRODUCTS

IVIEW

IPAS

USENS

Specs

Camera

Image Sensor
1/4” Color CMOS Image Sensor
View Angle
145°(D), 120°(H), 68°(V)
Operating Voltage
DC 12V (via Monitor)
Operating Temperature
-40°C ~ +105°C
Dimensions
60 x 35 x 48 mm (W x D x H)
Waterproof
IP69K
Weight
0.98kg
Video Output
Composite Video (CVBS) 75Ω 1Vp-p



Monitor

Screen Size
7-inch TFT
Resolution
1024×600
Colour Depth
16.7M
Weight
1.03kg
Operating Voltage
DC 12V ~ 48V
Operating Temperature
-20°C ~ 65°C
Dimensions (WxHxD)
225 x 140 x 70 mm (W x D x H)
Waterproof
IP69K
Power Consumption
Up to 2 channels
Video Input
15.6W(Stand-by), 24W(with alert)
Camera Input
Composite Video (CVBS) 75Ω 1Vp-p
Buttons
5 Buttons with LED Backlight



Micro SD card
Above 64Gb Class10 (exFAT format is required), MLC type recommended





Documents

 Adobe_PDF_file_icon_32x32
IVIEW+ Brochure
