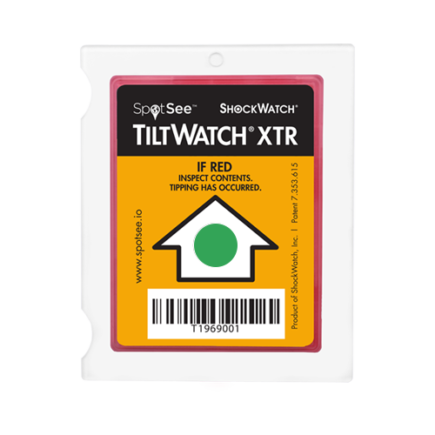

TiltWatchXTR tilt indicator

The TiltWatch XTR tilt sensor turns red if the container it is affixed to tips on its side or is completely upended.

TiltWatch XTR will not activate under normal handling conditions or aircraft take-offs.

The TiltWatch XTR tilt indicator detect unacceptable tilting on goods that must remain upright. When these indicators are used, the product cannot be tipped without indisputable evidence of mishandling.

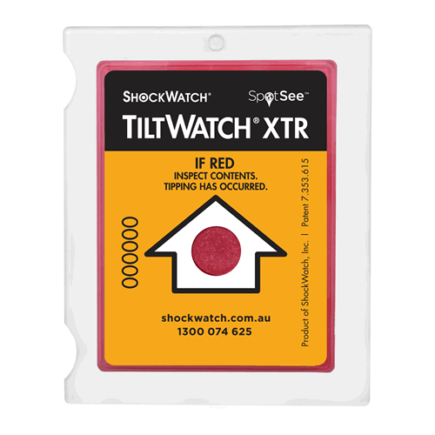

The TiltWatch XTR tilt indicator turns red if the container it is affixed to is tilted past 80° or is completely upended. TiltWatch XTR tilt indicator will not activate under normal handling conditions or aircraft take-offs.

Types of products that could be monitored with the TiltWatch XTR tilt indicator

  • Large computer systems
  • Top heavy electro-mechanical systems
  • Telecommunications equipment
  • Photocopiers
  • Refrigeration equipment
  • Medical equipment
  • Large glass related items

Mounting the TiltWatch XTR

The TiltWatch XTR impact indicators should be placed in an upright position near the lower corner of the container or package.

Two TiltWatch XTR are required for each package mounted on adjacent sides to monitor all planes.

A Complete TiltWatch XTR Tilt Indicator Program

Success of the Shockwatch Program is measured by a reduction in damage. Preventing mishandling is the key to damage reduction.
In order to prevent mishandling, communication with everyone in the supply chain is key. Shockwatch provides letters that you can customise for your carriers and customers. These letters describe the TiltWatch XTR tilt indicator program and detail the steps to follow in the event a shipment is received with an activated TiltWatch XTR.

Our TiltWatch XTR Tilt Indicator Damage Prevention Implementation Guide will assist you in setting up a program to deter mishandling and reduce you damage related costs.

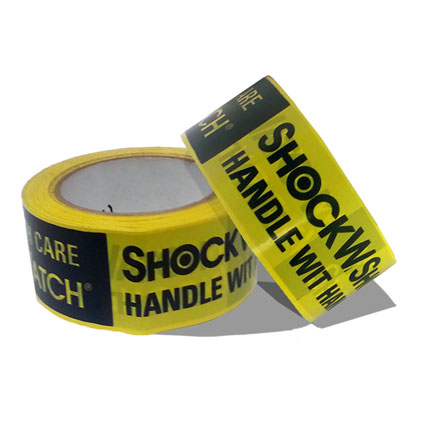

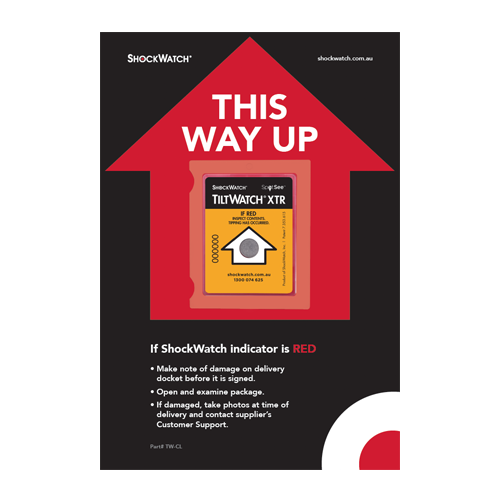

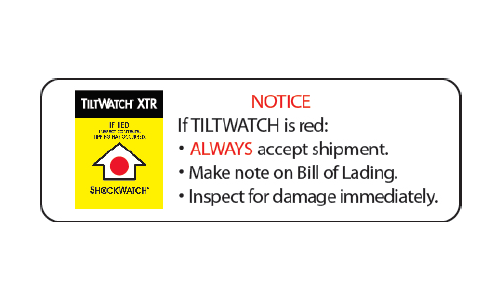

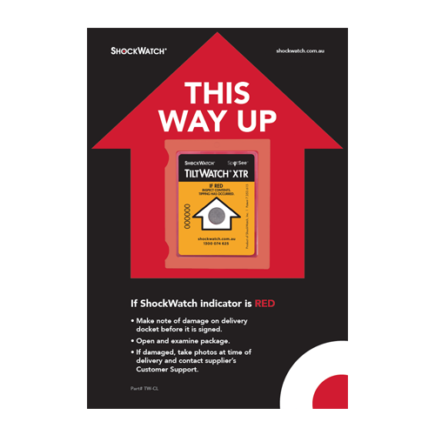

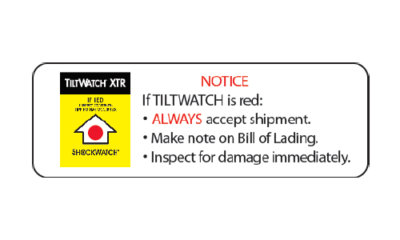

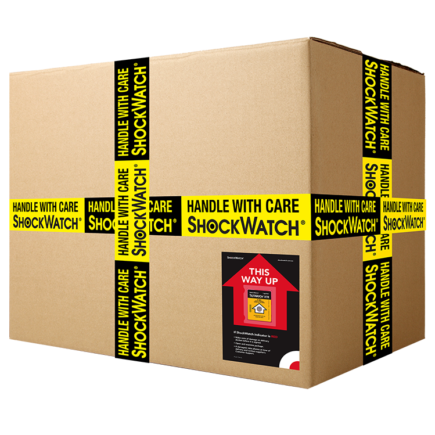

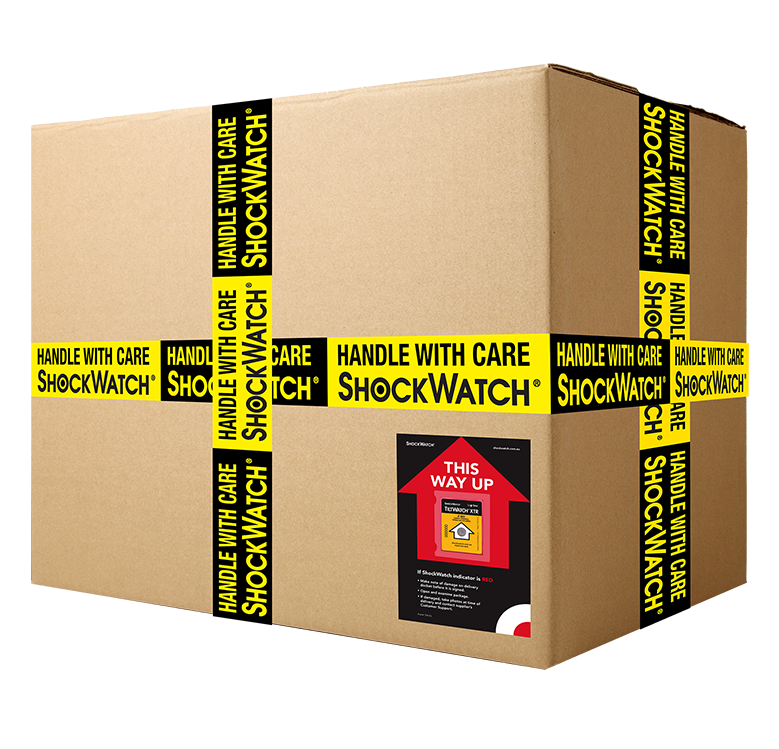

Tiltwatch XTR mounted on box Optional Companion Labels and Alert Tape are recommended for use with the TiltWatch XTR as additional tools that increase the visibility or the handling requirements of your package. The TiltWatch XTR is applied to the Companion Label and the Companion Label is applied to the shipment.
(see Related Accessories tab below)

Green_tick Acts as a visual deterrent to improper handling Green_tick Promotes chain of accountability for all product handling
Green_tick Reduces mishandling through awareness Green_tick Confirms effectiveness of packaging
Green_tick Provides indisputable evidence of mishandling Green_tick Helps identify trouble spots in supply chain, from production to transportation and storage
Green_tick Alerts recipient to inspect contents before acceptance Green_tick Helps increase quality of product from dock to dock

Specifications

Operating Temperature – 40°C to +60°C
Humidity Tolerance 5% to 99% non-condensing
Size 7.4 cm x 6.9 cm x 0.5 cm
Activation Angle 80° +/-5% from vertical**
Monitoring Range Single plane
Composition Rigid polystyrene housing with stainless steel indicator
Installation Pressure sensitive adhesive or holes to accommodate screws, nails, and staples
Adhesive 2 mil high tack acrylic
Shelf Life 2 years from date of sale

Selection Guide

  • Use the TiltWatch XTR to monitor where you want to know if the container or product has been tilted on its side (monitors when tilted over 80 deg)
  • Two TiltWatch XTR’s mounted on adjacent sides may be required if you wish to monitor tilting on all planes (i.e left to right and front to back) based on the type of container/product that you are monitoring. If there is no prospect of tilting in one direction then you would only require one TiltWatch XTR on the shipment.



FAQ's

What is a Tiltwatch?

Tiltwatch is a tip indicating device for goods that must remain upright to ensure intact delivery.

How do you activate the TiltWatch XTR ready for monitoring?

By peeling the adhesive backing from the device, you automatically activate the sensor and can then place it on your shipment.

How many TiltWatch XTR's do I need per shipment?

Two are required to monitor all planes mounted on adjacent sides of the shipment for products that could be tipped over in any direction. If tipping is only possible in one direction, then one TiltWatch XTR is fine.
