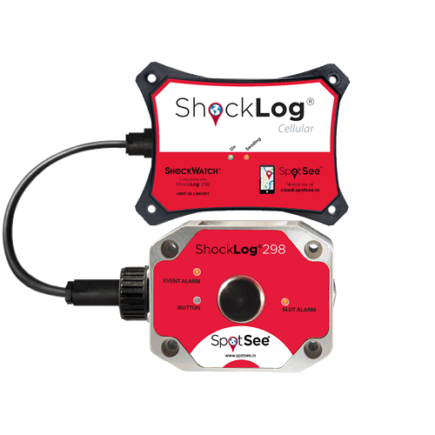

ShockLog Cellular impact and tracking recorder combines the powerful monitoring capabilities of the ShockLog 298 impact recorder with a cellular communication module to deliver real-time notifications of unacceptable handling in the supply chain.

ShockLog Cellular impact and tracking recorder combines the powerful monitoring capabilities of the ShockLog 298 impact recorder with a cellular communication module to deliver real-time notifications of unacceptable handling in the supply chain.

Easy to Use

This easy-to-use device utilizes a proprietary piezoelectric accelerometer designed and manufactured by SpotSee that provides industry leading impact analysis with the lowest noise floor on the market.

Real Time notification

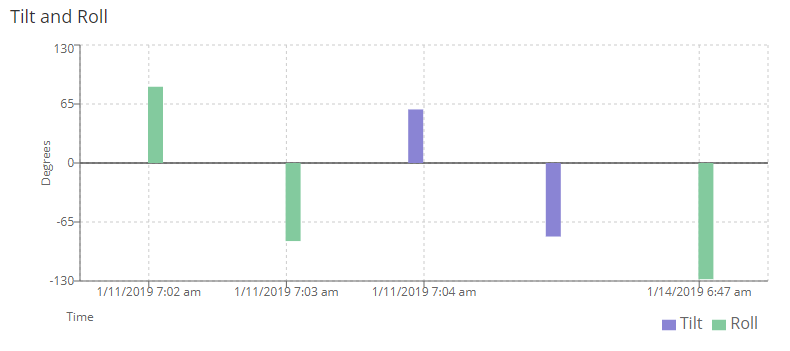

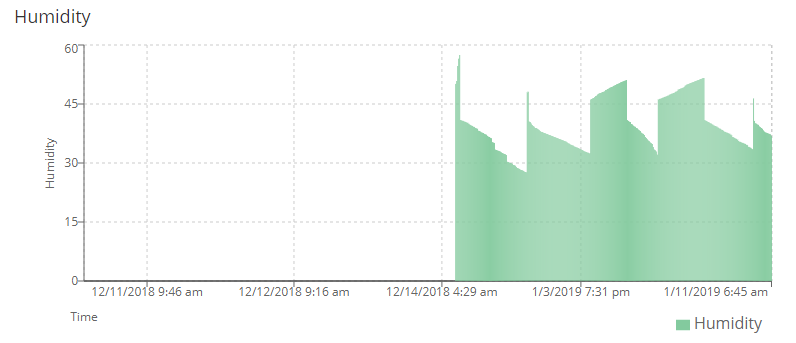

Get alerts in real-time when your shipment has experienced an out of tolerance impact, temperature, humidity, tilt, or roll condition. The information is accessible 24/7 via the user-friendly SpotSee Cloud from anywhere in the world. The SpotSee connectivity infrastructure provides low cost global connectivity without roaming charges.

Battery life

ShockLog Cellular deliver 90+ days of battery life without reliance upon a solar energy source that could cause data interruptions.

Know when an issue occurs

With cargo loss exceeding $50 billion annually, transparency in the supply chain is key to improving your operations. The ShockLog Cellular enables you to know that your assets are traveling safely to their destination and if something has gone wrong, you know when and where the issue occurred.

Download full journey data at journey end

With the capacity to record data for 870 events and 262,000-time slots, the end of the journey, if alarm conditions need to be further analyzed, the full data set can be downloaded into the ShockLog software for a more detailed view of the recorded data. The ShockLog Report View provides an overview of the entire journey: peak acceleration values for all three axes, detailed impact curves, and temperature.

Benefits

  • Shock and vibration technology used by the best engineers in the world
  • Low-cost global connectivity without roaming fees
  • 90+ days of connectivity battery life
  • 18 months of recorder battery life
  • Real-time out-of-tolerance condition notifications
  • 24/7 access to trip data from anywhere in the world
  • No data interruptions from unreliable solar energy
  • Robust impact analytics & recording
  • No loss of data if battery dies & keeps recording for 15 additional months

Connects to any new or existing ShockLog 298 with firmware version 30 or greater

Specifications

Operating Temperature Range -40°C to 85°C
Size 17.780cm x 28.829cm x 5.588cm
Weight 1544g
Battery 2 x 3.6V Lithium (Shocklog)
6 x 1.5V Lithium AA Batteries (Cellular Module)
Battery Life
18 months (ShockLog)
90+ days (Cellular Module)
Scale Factor Accuracy at 5G +/- 2%
Additional Error Other Ranges +/- 2%
Acceleration Range +/- 1 to +/- 200G
Cut-off Frequency Options (Programmable) 10Hz, 40Hz, 90Hz, 120Hz, and 250Hz
Wake-up, Warning and Alarm Threshold (% of Range) 5–95%
Wake-Up Time 0.25mS
External Power Source Option 4.5V min / 30V max
Sample Rate 496 samples per second
Connectivity Global Cellular 3G/2G

FAQ's

Can I use the Shocklog Cellular with my existing Shocklog 298?

Yes, if your current Shocklog 298 has firmware version 30 or greater. You can find out what firmware version your current Shocklog has in the Shocklog software by connecting to your PC and clicking on View > Communications. The box will show the version of firmware installed

Documents

Adobe_PDF_file_icon_32x32 Shocklog Cellular Brochure
Adobe_PDF_file_icon_32x32 Shocklog Cellular Data Sheet
Adobe_PDF_file_icon_32x32 Shocklog Cellular Quick Start Guide
Adobe_PDF_file_icon_32x32 Impact Recorders Overview Brochure

SpotSee Cloud

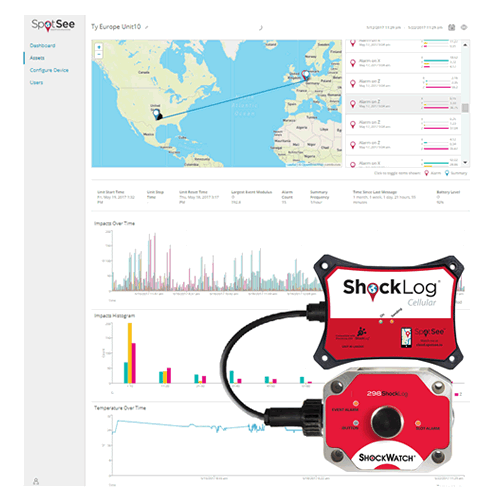

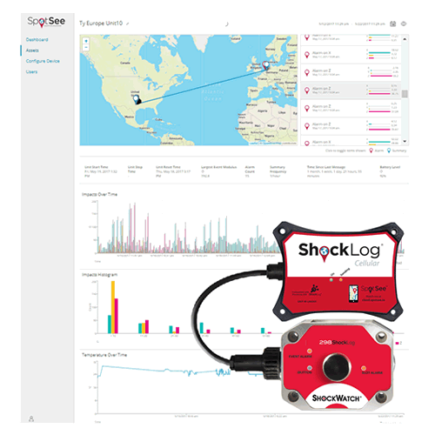

The SpotSee Cloud is where trip data is aggregated in real-time. The cloud features visualizations for multiple units. The graphs are easy to read and include data such as specifics of impact with locations, impacts over time, histogram, and temperature.

Features

  • Access to data from wherever you are with a dedicated web portal
  • Real-time reporting and tracking of incidents
  • Alarms with location, time, impact g-level, and direction of impact
  • Impacts-over-time visualization of each asset
  • Histogram the asset’s impacts

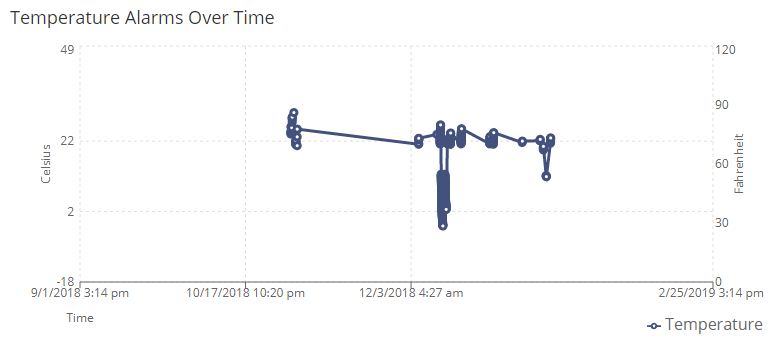

  • Temperature
