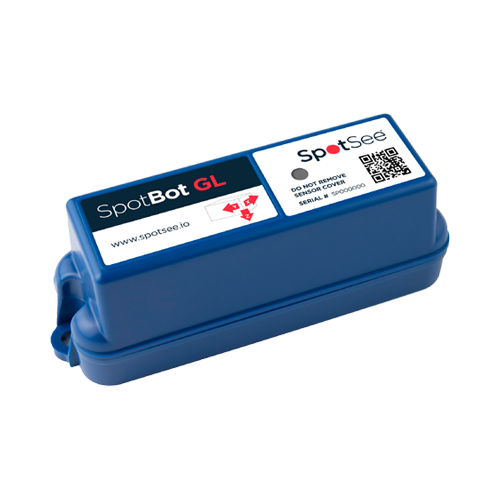

SpotBot GL

The SpotBot GL is the ideal solution for connecting you to your supply chain. Delivering tri-axial impact, temperature, and humidity monitoring along with location tracking, the SpotBot GL connects you to your assets via the SpotSee Cloud.

The SpotBot GL is the ideal solution for connecting you to your supply chain – connecting globally to cellular networks, as well as WiFi to give you visibility of your assets location and conditions. Delivering tri-axial impact, temperature, and humidity monitoring along with location tracking, the SpotBot GL connects you to your assets via the SpotSee Cloud. Login to see the status of your shipment and receive alerts throughout its journey.

The device combines GPS technology with proximity sensing of WiFi signals (WiFi sniffing) and cellular towers to track the location of shipments and the conditions they experience in transit. SpotBot pin-points where and when damage may have occurred due to temperature excursion, humidity or shock.

Measures impacts between 3.5 and 100G



Reach | ROHS Compliant

Reach | ROHS Compliant

World Class Monitoring

Companies around the world depend on SpotSee for impact monitoring solutions. The SpotBot GL measures impacts between 3.5 and 100G, meaning that it can be used to monitor a broad spectrum of assets from medical devices to automotive parts to power generation equipment. Additionally, the accuracy of the SpotBot’s temperature and humidity sensors is ideal for monitoring sensitive biotech, pharmaceutical, or diagnostics products.

Long Battery Life

A connected supply chain monitor is not valuable if it stops recording halfway through the journey. The SpotBot GL battery will last between 6 months and 4.5 years, depending upon the reporting interval. With long battery life, users do not need to worry about missing important information or constantly changing out batteries.

Accurate Location Data

SpotBot GL employs two different approaches to provide the most accurate location reporting available at any given time. The device will utilize proximity to Wi-Fi signals or cellular towers to deliver location information. The SpotBot GL also has geofencing capabilities, so that users are notified when an asset reaches its destination.

Global Communication Capabilities

The SpotBot GL communicates via the 4G LTE cellular network with a 2G fallback. This combination enables strong connectivity while monitoring assets in transit around the globe. In addition, the SpotBot GL can be configured to recognize and communicate
via known Wi-Fi networks.

Easy to Use

The SpotBot GL unit and trip settings are configured via a simple web application. Information from each trip is stored in the secure SpotSee Cloud and can be easily downloaded to provide the time, location, and severity of excursions experienced during transit.

Features

  • Monitor location, impact, temperature and humidity
  • 4G LTE-M and connectivity
  • Access to information through a secure, dedicated web portal
  • Accurate reporting of unacceptable conditions
  • Custom, timely alerts of changing conditions of your shipment
  • Long battery life

Applications

  • Automotive parts
  • Medium transformers
  • Turbines
  • Windows & glass doors
  • Heavy equipment rental
  • Small transformers
  • Computer & server equipment
  • Oil supplies
  • Freight forwarding
  • Medical equipment
  • Semiconductors
  • Construction equipment
  • Aerospace (as seen on TV shows)
  • Electronics
  • Furniture

SpotSee Cloud Features

Timely reporting of unacceptable conditions
Monitor your shipment’s temperature, humidity and impact.

Reporting functions to summarize location and condition of shipments
View impact events details, including location and time.

✅ SpotBot GL Features & Benefits ✅ Step-by-Step Setup Guide ✅ How to Access & Analyze Your Data

RELATED PRODUCTS

Shocklog Cellular

ShockLog Satellite impact recorder and tracking system

Shocklog Satellite

OpsWatch Wifi impact and vibration recorder

OpsWatch

Title

Specs

Measured Parameters
Impact, Temperature, Humidity, and Location
Acceleration Range
3 G to 100G
Weight
189 gm
Acceleration Filter
Bandwidth 200 Hz
Temperature Range
-20°C to 60°C
Temperature Accuracy
+/- 0.5°C
Humidity Range
10-90% RH
Humidity Accuracy
+/- 2% RH
Sample Rate (Temperature / Humidity)
15 minutes to 24 hours (programmable)
Reporting Interval / Battery Life
1 hour/0.5 year
2 hours/1 year
4 hours/1,8 years
8 hours/2.8 years
12 hours/3.5 years
24 hours/4.5 years
Other information Communication Technology
4G LTE, WiFi
Location
GPS, Nearest Cell Tower, Nearest WiFi
Dimensions
131 mm x 39 mm x 46 mm
Mounting Options
Screw Mount / Adhesive / Magnetic Feet (Optional)
Battery Type
Lithium Battery Pack







Documents

Adobe_PDF_file_icon_32x32
SpotBot GL Sales Sheet





Cloud

The SpotSee cloud is where trip data is aggregated in real-time. The cloud features visualizations for multiple units. The graphs are easy to read and include data such as specifics of impact with locations, impacts over time, histogram, and temperature.

Features

  • Access to data from wherever you are with a dedicated web portal
  • Real-time reporting and tracking of incidents
  • Alarms with location, time, impact g-level, and direction of impact
  • Impacts-over-time visualization of each asset
  • Histogram the asset’s impacts

SpotBot cloud dashboard map

Real-time Reporting
The SpotSee cloud tracks location and impacts in real-time. This information is sent to the cloud at predetermined intervals so you always know the status of your asset.

SpotBot cloud dashboard map magnify

Detailed Impact Alarm Data
See all your asset alarms including location, time, impact g-level, and direction of impact. The data visualizes impacts over time so you can easily spot the higher outliers. The histogram is a quick view of the units impacts grouped by g-level so you know quickly if there are any potentially damaging impacts.

SpotBot cloud dashboard impacts over time graph

SpotBot cloud dashboard impact histogram
