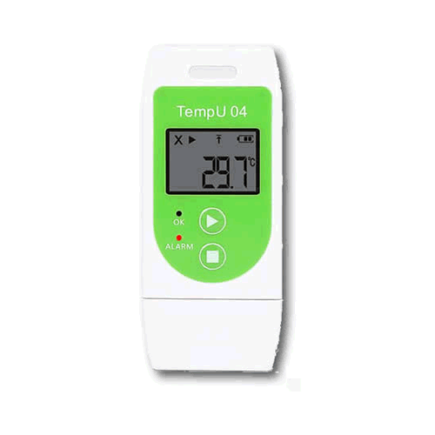

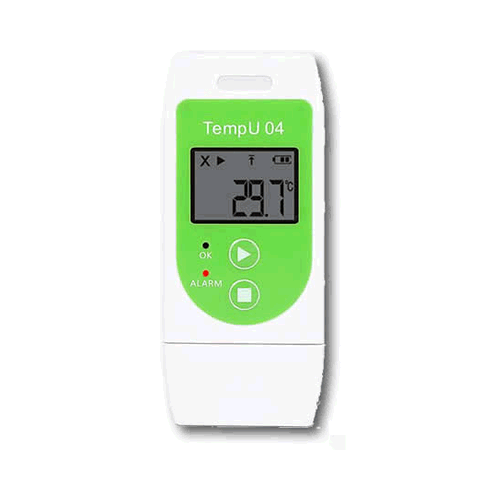

TempU 04

The TempU 04 Temperature Multiuse USB Data Logger is the perfect tool for cold-chain monitoring and documentation of temperature conditions with auto generated PDF and CSV data download

The TempU 04 multi-use USB Temperature Data Logger is the perfect tool for cold-chain monitoring and documentation of temperature conditions that are critical in laboratories, pharmaceutical, medical, storage, freezers, coolers, shipping containers, warehouses, environmental monitoring and food storage applications.

Features

Multi-use temperature measurement and recording
Statistics available on LCD screen
No software needed to export data
Auto-generate PDF and CSV file
Reprogrammable software
Designed for logistics temperature monitoring

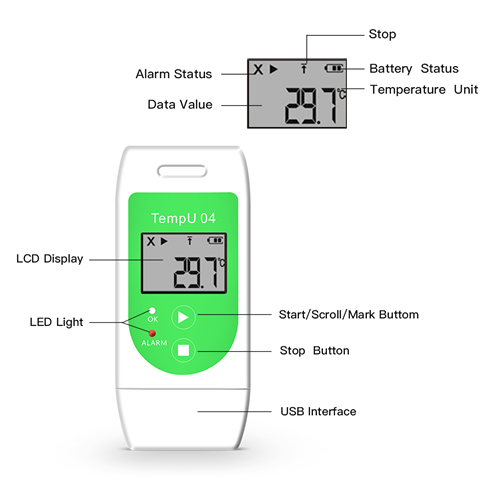

TempU04 temperature recorder features

How to Use

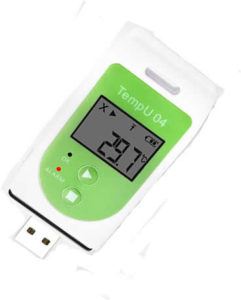

Simply start the recorder, drop it in the shipment and plug it into a USB port at the end of the journey for the PDF temperature report.

TempU 03 how to use

RELATED PRODUCTS

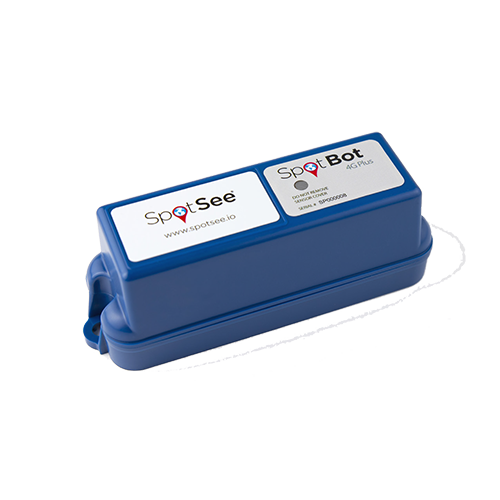

SpotBot impact monitoring and tracking recorder front view

SpotBot Cellular

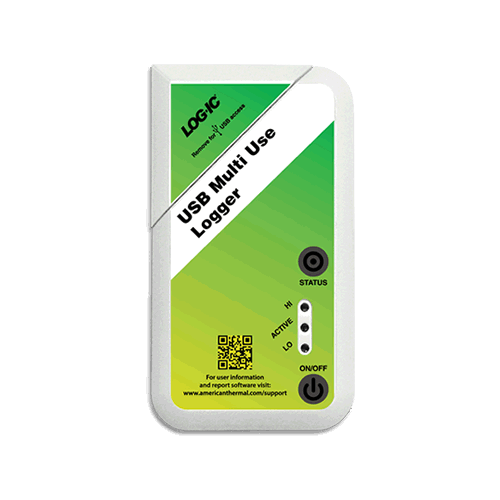

Log-ic temperature recorders

Log-ic temperature recorders

SpotBot BLE impact recorder

SpotBot BLE

Specs

Temperature Scale ºC or ºF
Temperature Range Temperature -30°C ~ +60°C
Temperature Accuracy ±0.5°C (-20ºC ~ +40ºC), ±1.0°C (other range)
Temperature Resolution 0.1°C
Data Storage Capacity 32,000 Readings
Shelf Life / Battery ~ 1 year / CR2032 button cell (depending on sampling rate and environment)
Recording Interval Programmable (10sec ~ 18hrs) – Default: 10mins
Recording Options Push-to-Start or Start Delay
Start Delay Programmable (0 ~ 254mins) – Default: 30mins
Alarm Delay Programmable (0 ~ 960mins) – Default: 10mins
Alarm Range Programmable High / Low Alarm Limit per Channel – Default: <2º or >8ºC
Report Generation Auto-generate PDF report and CSV file
Communication Interface USB 2.0
Time Zone UTC +0.00 – Default
Dimensions / Weight 84mm x 36mm x 14mm / 23g

Documents

 Adobe_PDF_file_icon_32x32 TempU 04 Sales Sheet
 Adobe_PDF_file_icon_32x32 TempU 04 Operating Instructions
