Shocklog 248

  • Magnetic mount for shocklog impact recorders

ShockLog 248 impact recorders offer users the same level of quality and reliability as the ShockLog 298 but with reduced functionality.

This unit records up to 128 events with a detailed record of the 1st and the 14 most significant with detailed graphs.

Factory set g ranges available: 100g, 30g and 10g

Also available with an external temperature and humidity sensor.

BROCHUREENQUIRE NOW

ShockLog 248 impact recorders offer users the same level of quality and reliability as the ShockLog 298 but with reduced functionality.
This unit records up to 128 events with a detailed event graph and record of the 1st and the 14 most significant events.

The ShockLog 248 is available in factory set g ranges, 100g, 30g and 10g.

Reach | ROHS Compliant

Features

  • Record max peak X, Y, and Z and internal temperature
  • Record impact events for up to 15 events
  • Field-proven triaxial piezoelectric accelerometer technology
  • Show direction of impact
    – X, Y, and Z
  • User-definable alarm levels
  • Programmable wake-up levels for maximizing battery life
  • LED lights for visual notification of alarms and warnings
  • Self-contained unit design, free of cables and wires
  • iButton® and USB data transfer options
  • IP67-rated, RF-screened
  • Temperature/humidity sensor built into unit (optional)

Applications

  • Logistics / Transport and Storage
  • Chemicals/Petro-Chemicals
  • Aerospace and Defense
  • Furniture and Fixtures
  • Forestry and Wood Products
  • Metal Fabrication
  • Energy and Utilities
  • Mining
  • Electronics – Telecommunications
  • Electronics – Computer Hardware
  • Auto and Truck Parts
  • Air Conditioning
  • Manufacturing
  • Aerospace and Defense
  • Medical Devices and Supplies
  • Fibre Repeater
  • Food and Beverage
  • Industrial Equipment
  • Marine
  • Robotics
  • Construction – Supplies and Fixtures
  • Railroads
  • Pumps and Motors
  • Packaging/Crating
  • Photography
  • Water Treatment / Filtration
  • Glass
  • Scientific and Technical Instruments / Research
  • CNC Equipment

ShockLog and g-View Selection Guide

If you do not have any non-operating shock specifications for the product you are shipping then use the guide below to assist with your selection.
This is a guide only and not intended to replace actual testing of the product’s shipping properties prior to shipment.
This merely allows you to select an appropriate scale, which then allows the Shocklog or g-View to test the products’ shock profile.
A standard rule of thumb to apply to select an appropriate scale setting as shown below and should be related to the type of product that is to be shipped or the mass of the product.

Product weight Scale Product
less than 900kgs 100G ShockLog 298
ShockLog 248 (100g)
over 900 kgs up to 4,500 kgs 30G ShockLog 298
ShockLog 248 (30g)
g-View (25g)
over 4,500 kgs up to 90,000 kgs 10G ShockLog 298
ShockLog 248 (10g)
g-View (10g)
over 90,000 kgs up to 180,000 kgs 3G ShockLog 298
over 180,000 kgs 1G ShockLog 298

Accessories

Magnetic Mount

Magnetic Mount for metal surfaces

RELATED PRODUCTS

g-View impact recorder
SpotBot impact monitoring and tracking recorder front view

Specs

Operating Temperature Range
-40°C to 85°C
Size
84mm x 84mm x 55mm
Weight
455g (without battery)
Battery Type
1 x 3.6V Lithium Thionyl Chloride
1 x 1.5V AA alkaline
 Battery Life
Up to 12 months w/ lithium battery
Scale Range (Factory Set)
10G, 30G, 100G
Cut-off Frequency Options (Factory Set)
40Hz, 90Hz, and 250Hz
Time Slots:
Up to 262,000
Time Slot Length
10 seconds to 1 hour
Humidity / Temperature Factory Fit Option
Humidity
0-100% RH
Temperature-40°C to 85°C
Dew Point
-40°C to 85°C 0-100% RH







FAQs

How do I know which ShockLog product may be the most suitable?

If the manufacturer of the product has non-operating shock specifications this will assist greatly with which unit to select as you will have the known impact or vibration levels that are unacceptable.
If the above information is not available then we can determine which product may be the most suitable based on the mass of the product. The selection best suited would depend on how much information you want to use.
If you require GPS when an event occurs and/or Tilt and Roll monitoring and/or vibration monitoring then you will have to use the ShockLog 298

What is in the ShockLog accessory kit?

The ShockLog accessory kit contains the following items:
1 – ShockLog Software CD (Containing software and user manual)
1 – Quick Start Manual
1 – USB Communication Cable
2 – AA Lithium Batteries
1 – iButton Set (START, STOP, DOWNLOAD, SETUP and CLOCK)
1 – iButton USB Connection BUS and Cable

What is the difference between a slot and a summary?

Slots are user-defined periods of time in which various criteria will be recorded.
Summaries provide an overview of what was recorded by the ShockLog in a given period of time (the summary interval). A summary records the number of warnings/alarms and the maximum recorded slot values in the summary interval time period.

What is the battery life for a ShockLog unit?

The battery life of a ShockLog unit is dependent upon the type of unit, configuration settings, and the type of batteries being used. With the recommended lithium battery, the ShockLog can have a 9 to 18 month battery life.

What is an event, and how do I record it?

Events are graphical representations of the most severe impacts that the ShockLog is monitoring.
These are set up in the Events tab of the Setup window in the software as warnings and alarms g levels.

What is included in the magnetic mounting kit?

The magnetic mounting kit contains the mounting plate only. The four metal bolts and four flex-lock connectors are included with each ShockLog 298 sold.

I downloaded the data from my unit, and it only recorded slot and summary data for part of the trip. There isn't a problem with the batteries in the unit. Why did this happen?

When configuring your ShockLog, it is important to have the slots and the summaries last longer than the duration of the journey. These settings can be configured in the Slots tab of the Setup window. In Version 10.2 or newer of the software, you can use the Journey Duration button to determine what these settings should be.

How does my ShockLog software license work?

ShockWatch software licensing is intended for a single computer. If you need additional seats or additional computers to use the software, please contact ShockWatch.
Also, please note the following when entering the license code (found inside the software CD case): The code begins with the letters “SW”
The license code will not contain the letter “O”; these are zeros (0)

When I connect the ShockLog to my computer using the USB connection, it appears to be running, but when I disconnect it, none of the lights are flashing. Is the unit working?

If no LEDs are flashing after you have sent a setup to the ShockLog and have unplugged the unit, then there may not be any batteries in the unit. Make sure that batteries are installed in the ShockLog unit before sending the setup to the equipment.

When I use the Download iButton, will I obtain all the data from the ShockLog?

Please keep in mind that when the Download iButton is used, no data is erased from the ShockLog unit. Only a limited amount of information is transferred from the ShockLog with the iButton. Primarily, the information obtained is the report displayed on the main screen of the software. Even the events information is limited to the most severe events which have occurred.

Why is the software prompting for the Licence Key each time it is launched?

If you are prompted to enter the Licence key every time you launch the software you will have to do the following to save the licence in the registry:
1. Close Software
2. Right click on the ShockLog icon on the desktop
3. Select “Run as Administrator”
4. Enter the licence key again
5. Close the software
6. Open the software and you should not be prompted to enter the Licence key anymore

Documents

Adobe_PDF_file_icon_32x32
ShockLog 248 Brochure
Adobe_PDF_file_icon_32x32
ShockLog 248-298 Quick Start Guide
Adobe_PDF_file_icon_32x32
ShockLog 248-298 User Manual
Adobe_PDF_file_icon_32x32
Impact Recorders Comparison Guide

Software

Control your ShockLog device through a simple Windows®-based software program. Clear instructions allow for quick deployment and easy data analysis. The ShockLog Report View provides an overview of the entire journey. Export data into programs such as Excel and MatLab for more detailed analysis.

The ShockLog software runs on a desktop or laptop PC using the Windows XP, Vista, Windows 7, or Windows 8 operating systems.

Shocklog 248 screen shots

shocklog_one_page_report_lg

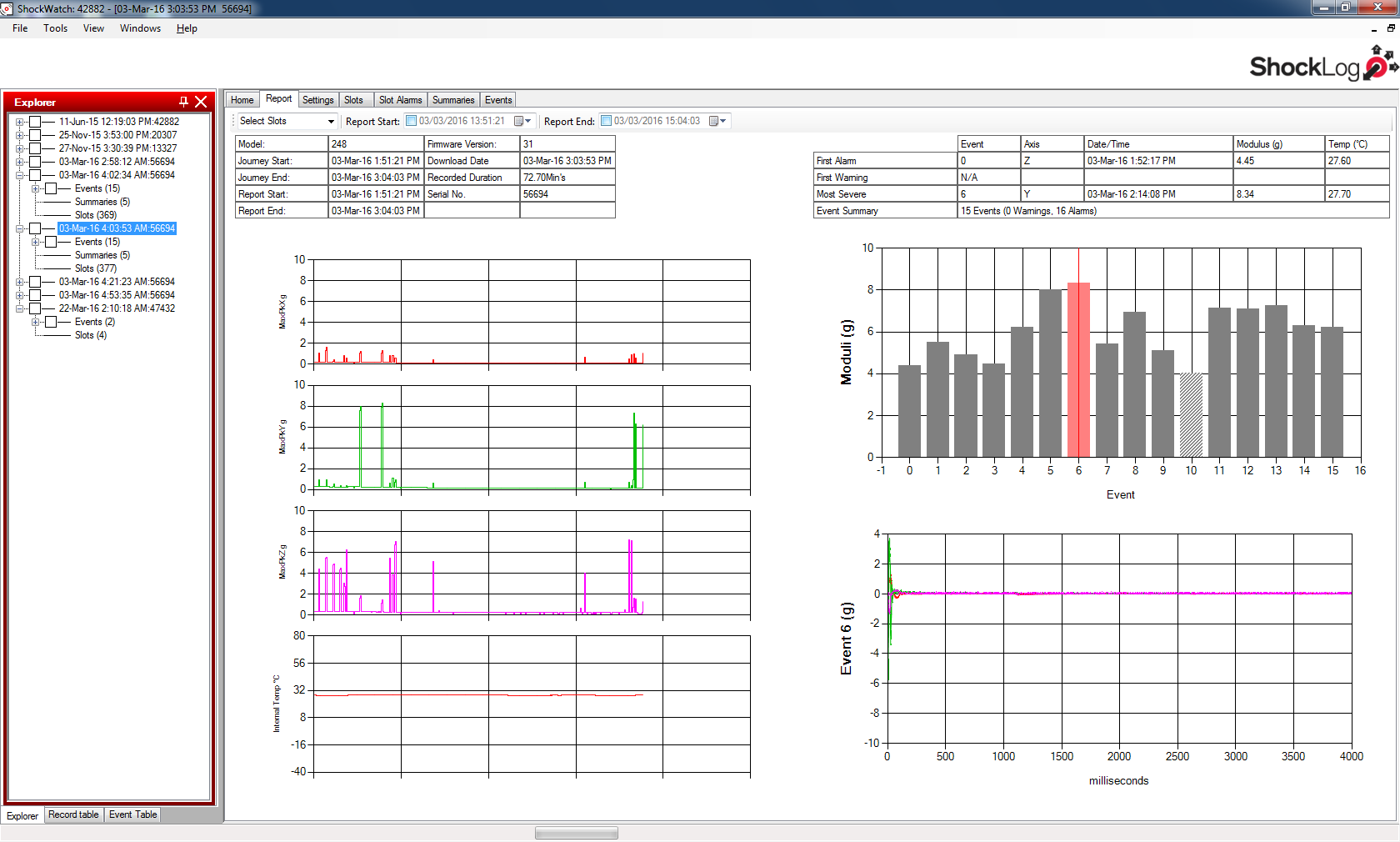

Full Journey Report
The ShockLog Report View provides an overview of the entire journey in both text and graphic formats. Information delivered includes an event summary, detailed event information, and time slot information. It is possible to zoom in on data of particular interest in order to analyze the information. Data can be exported into packages such as Excel and MatLab for more detailed analysis.

shocklog_slots_screen_web_lg

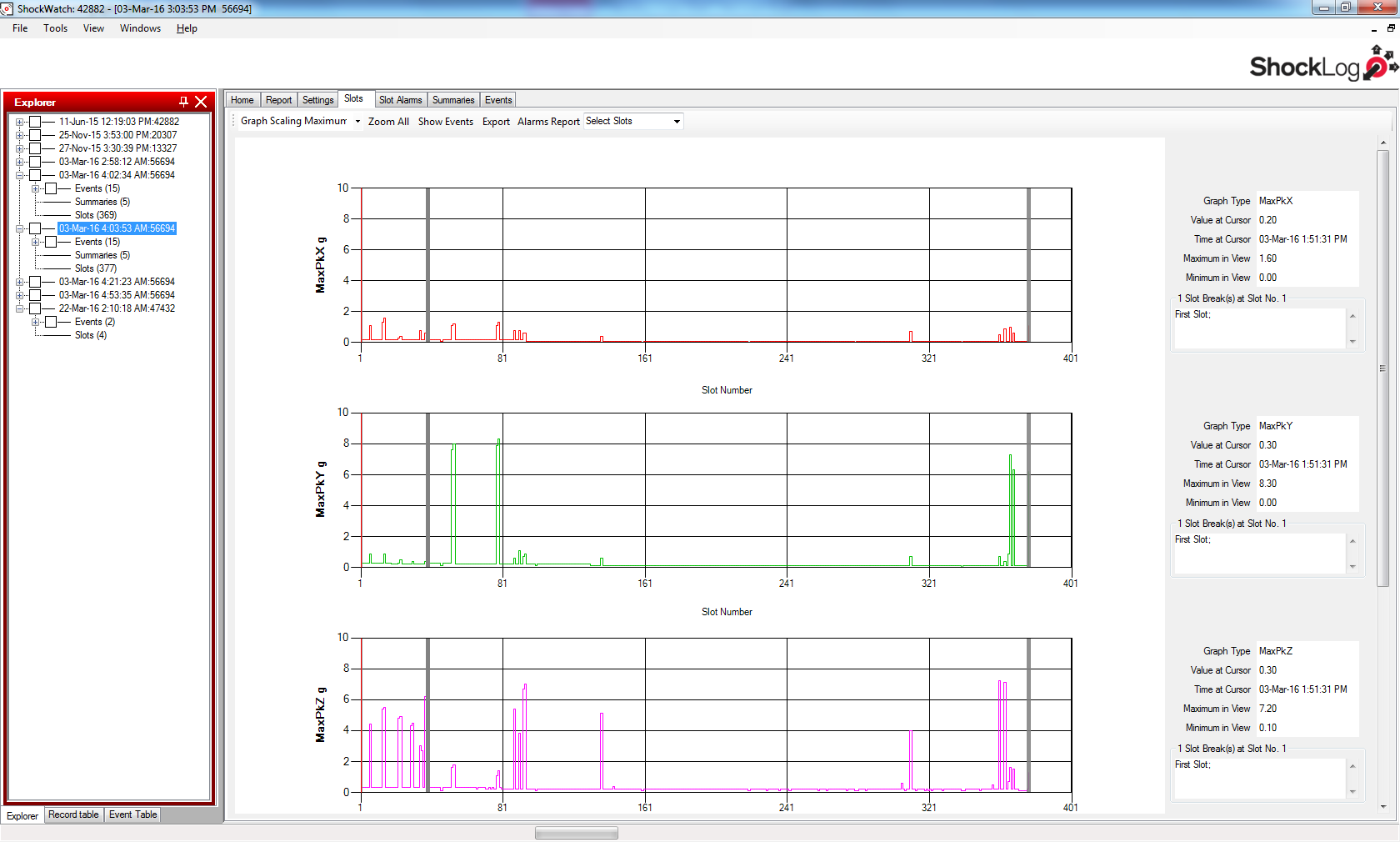

Slots Graph (journey profile for each axis)
The ShockLog software allows the user to zoom into specific areas of the Slots
graphs and highlight the key, potentially damaging areas of information.
From the Slot graphs, it is possible to jump to the detailed event curves associated with the period of time being displayed by the slot graphs.

shocklog_event_screen_web_lg

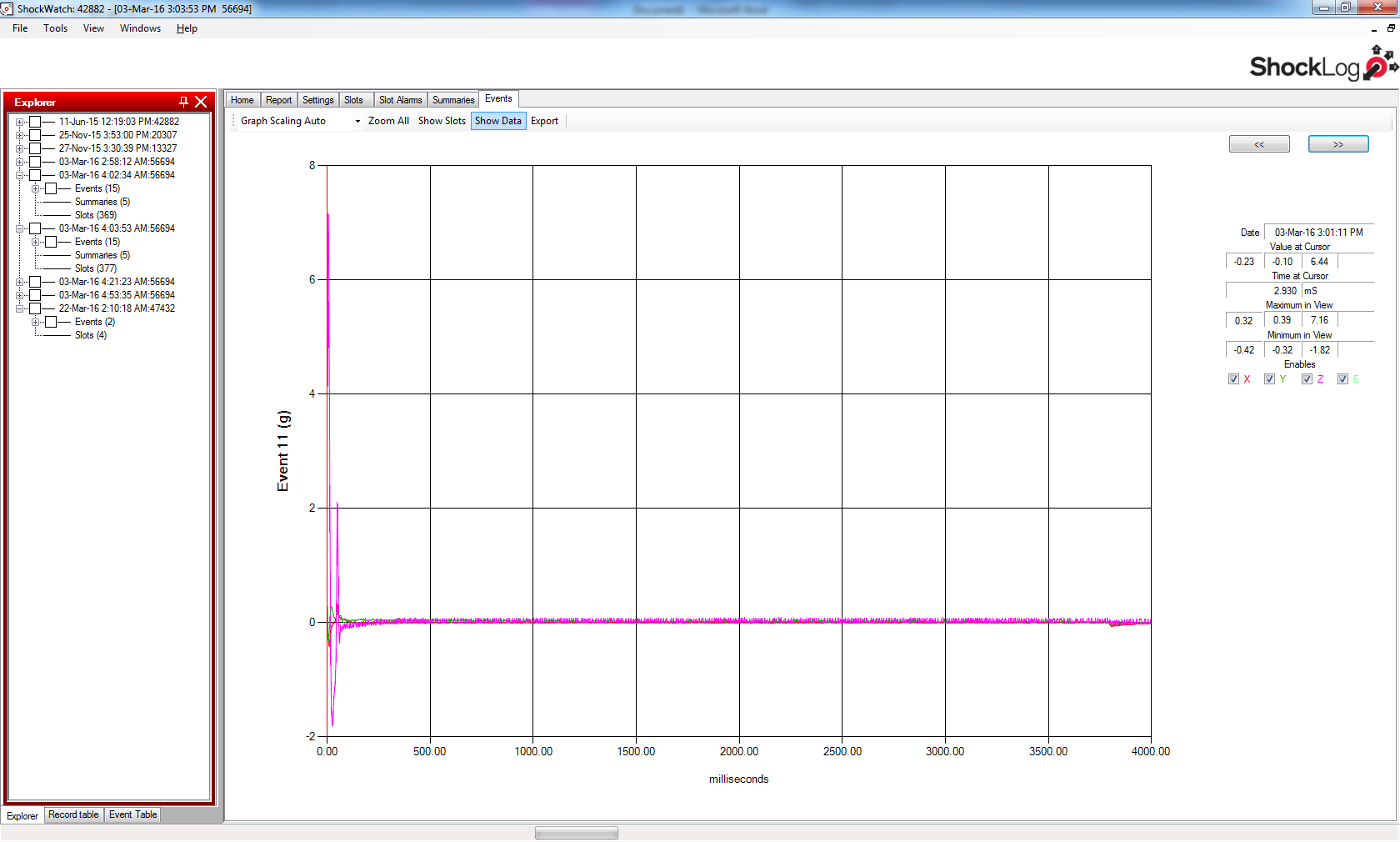

Detailed Event Curve
The event curve displays the detailed data curve for a given event.
The detailed event curve shows the magnitude and duration of the impact event, with the horizontal axis displaying the time in milliseconds and the vertical axis
showing the force of the impact in g. All three axes will be displayed giving users a full understanding of the level of impact seen across all axes
