SpotBot 4G Plus

The SpotBot 4G Plus is the ideal solution for connecting you to your supply chain. Delivering tri-axial impact, temperature, and humidity monitoring along with location tracking, the SpotBot 4G Plus connects you to your assets via the SpotSee Cloud.

The SpotBot 4G Plus is the ideal solution for connecting you to your supply chain. Delivering tri-axial impact, temperature, and humidity monitoring along with location tracking, the SpotBot 4G Plus connects you to your assets via the SpotSee Cloud. Log-in to see the status of your shipment and receive alerts throughout its journey. Supply chain transparency is critical in running an effective operation.

The SpotBot 4G Plus has been designed for use in the life sciences, automotive, electronics, power generation and aerospace industries,
The SpotBot 4G Plus provides extensive insights into the condition of a product or shipment through the supply chain. Detailed location, impact, temperature, and humidity data are delivered to the SpotSee Cloud via the 4G LTE-M cellular network or through known Wi-Fi connections. The device combines GPS technology with proximity sensing of Wi-Fi signals and cellular towers to track the location of shipments and the conditions they experience in transit.

Reach | ROHS Compliant

Reach | ROHS Compliant

World Class Monitoring

Companies around the world depend on SpotSee for impact monitoring solutions. The SpotBot 4G Plus measures impacts between 3.5 and 100G, meaning that it can be used to monitor a broad spectrum of assets from medical devices to automotive parts to power generation equipment. Additionally, the accuracy of the SpotBot’s temperature and humidity sensors is ideal for monitoring sensitive biotech, pharmaceutical, or diagnostics products.

Long Battery Life

SpotBot 4G Plus employs three different approaches to provide the most accurate location reporting available at any given time. The device will utilize GPS or proximity to WiFi signals or cellular towers to deliver location information. The SpotBot also has geofencing capabilities, so that users are notified when an asset reaches its destination.

Global Communication Capabilities

The SpotBot 4G Plus communicates via the 4G LTE-M cellular network. This network provides better power efficiency and signal range than 4G LTE, making it an ideal solution to monitor assets moving around the globe. In addition, the SpotBot can be configured to recognize and communicate via known WiFi networks.

Easy to Use

The SpotBot 4G Plus unit and trip settings are configured via a simple web application. Information from each trip is stored in the secure SpotSee Cloud and can be easily downloaded to provide the time, location, and severity of excursions experienced during transit.


  • Monitor location, impact, temperature and humidity
  • 4G LTE-M and connectivity
  • Access to information through a secure, dedicated web portal
  • Accurate reporting of unacceptable conditions
  • Custom, timely alerts of changing conditions of your shipment
  • Long battery life


  • Automotive parts
  • Medium transformers
  • Turbines
  • Windows & glass doors
  • Heavy equipment rental
  • Small transformers
  • Computer & server equipment
  • Oil supplies
  • Freight forwarding
  • Medical equipment
  • Semiconductors
  • Construction equipment
  • Aerospace (as seen on TV shows)
  • Electronics
  • Furniture

SpotSee Cloud Features

Timely reporting of unacceptable conditions
Monitor your shipment’s temperature, humidity and impact.

Reporting functions to summarize location and condition of shipments
View impact events details, including location and time.


Shocklog Cellular

ShockLog Satellite impact recorder and tracking system

Shocklog Satellite

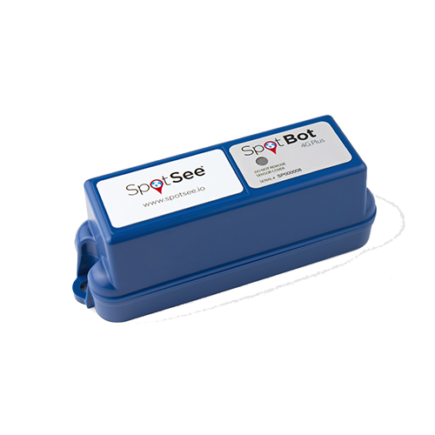

SpotBot impact monitoring and tracking recorder front view

SpotBot Cellular

OpsWatch Wifi impact and vibration recorder




Measured Parameters
Impact, Temperature, Humidity, and Location
Acceleration Range
3.5G to 100G
189 gm
Acceleration Filter
Bandwidth 200 Hz
Temperature Range
-20°C to 60°C
Temperature Accuracy
+/- 0.5°C
Humidity Range
10-90% RH
Humidity Accuracy
+/- 2% RH
Sample Rate (Temperature / Humidity)
15 minutes to 24 hours (programmable)
Reporting Interval / Battery Life
1 hour/1 year
2 hours/2 years
4 hours/2.5 years
8 hours/5 years
12 hours/6 years
24 hours/7 years
Other information Communication Technology
4G LTE-M, WiFi
GPS, Nearest Cell Tower, Nearest WiFi
131 mm x 39 mm x 46 mm
Mounting Options
Screw Mount / Adhesive / Magnetic Feet (Optional)
Battery Type
Lithium Battery Pack





SpotBot 4G Plus Sales Sheet

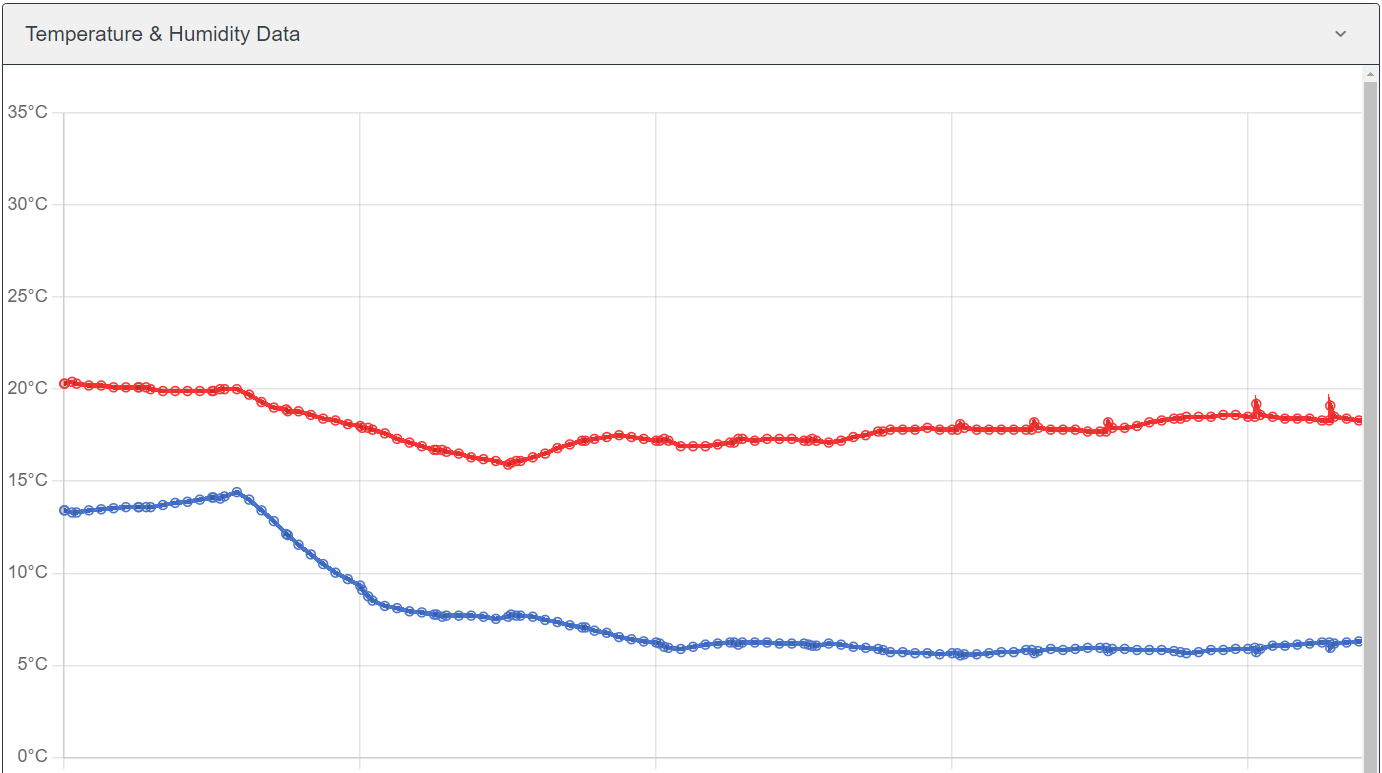

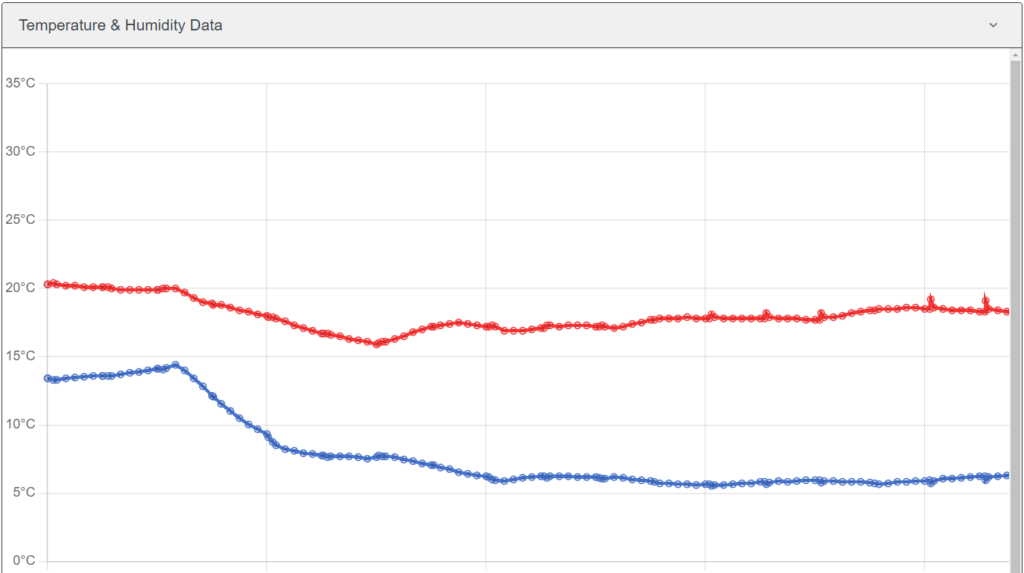

The SpotSee cloud is where trip data is aggregated in real-time. The cloud features visualizations for multiple units. The graphs are easy to read and include data such as specifics of impact with locations, impacts over time, histogram, and temperature.


  • Access to data from wherever you are with a dedicated web portal
  • Real-time reporting and tracking of incidents
  • Alarms with location, time, impact g-level, and direction of impact
  • Impacts-over-time visualization of each asset
  • Histogram the asset’s impacts

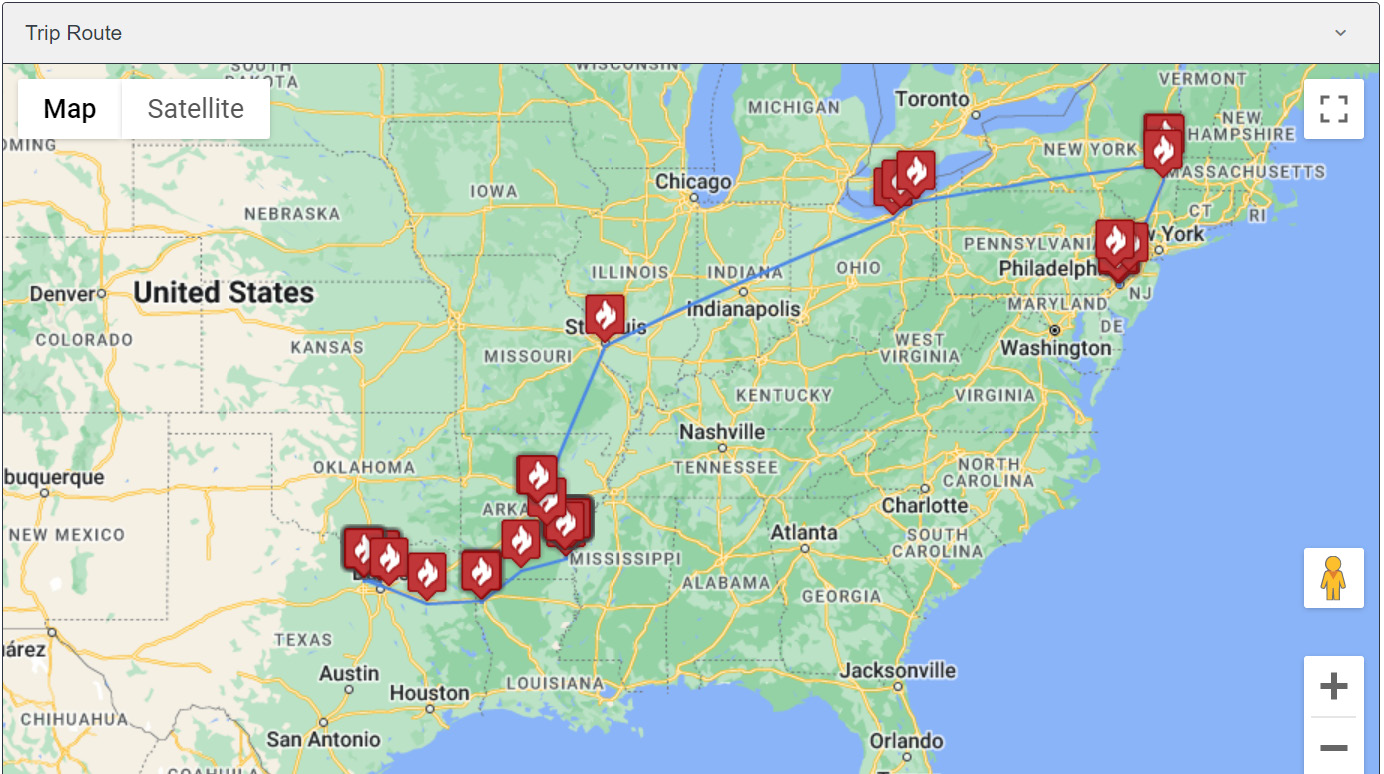

SpotBot cloud dashboard map

Real-time Reporting
The SpotSee cloud tracks location and impacts in real-time. This information is sent to the cloud at predetermined intervals so you always know the status of your asset.

SpotBot cloud dashboard map magnify

Detailed Impact Alarm Data
See all your asset alarms including location, time, impact g-level, and direction of impact. The data visualizes impacts over time so you can easily spot the higher outliers. The histogram is a quick view of the units impacts grouped by g-level so you know quickly if there are any potentially damaging impacts.

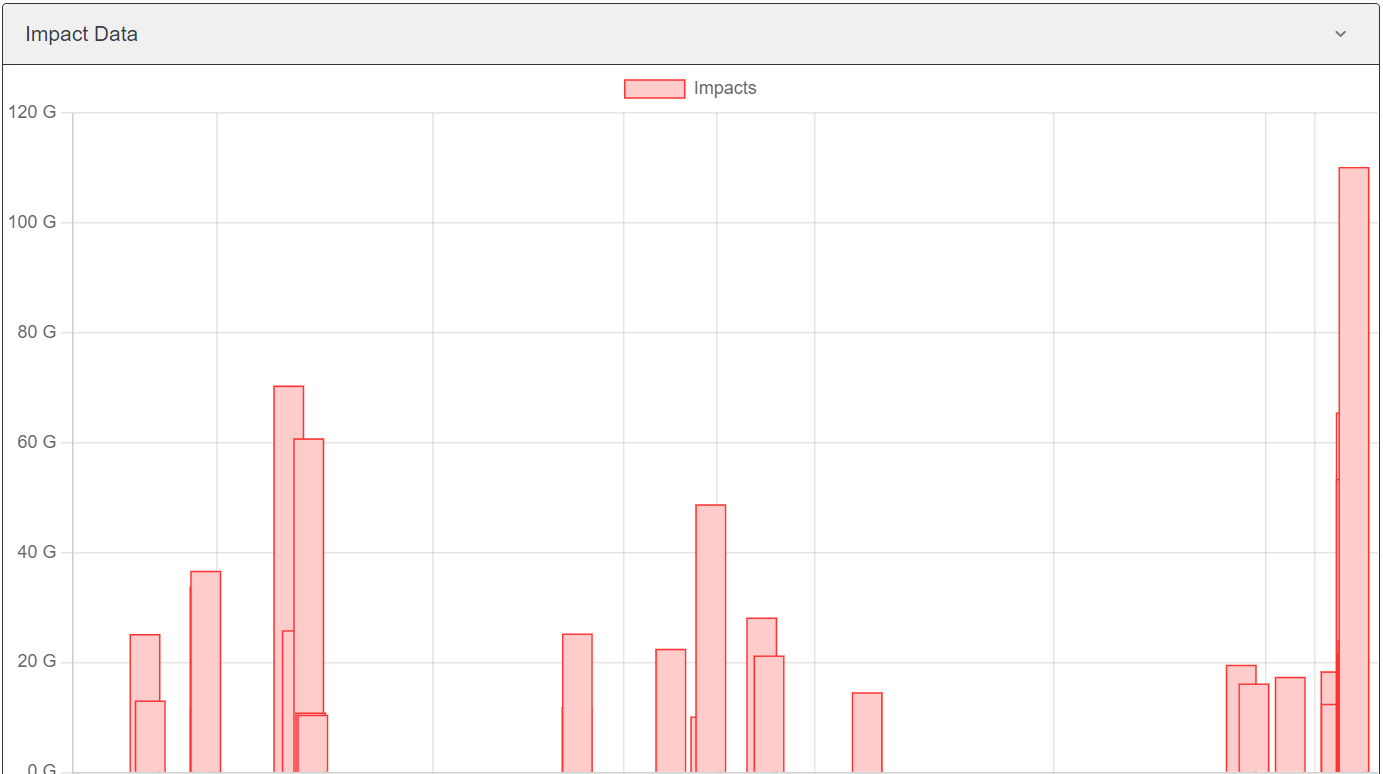

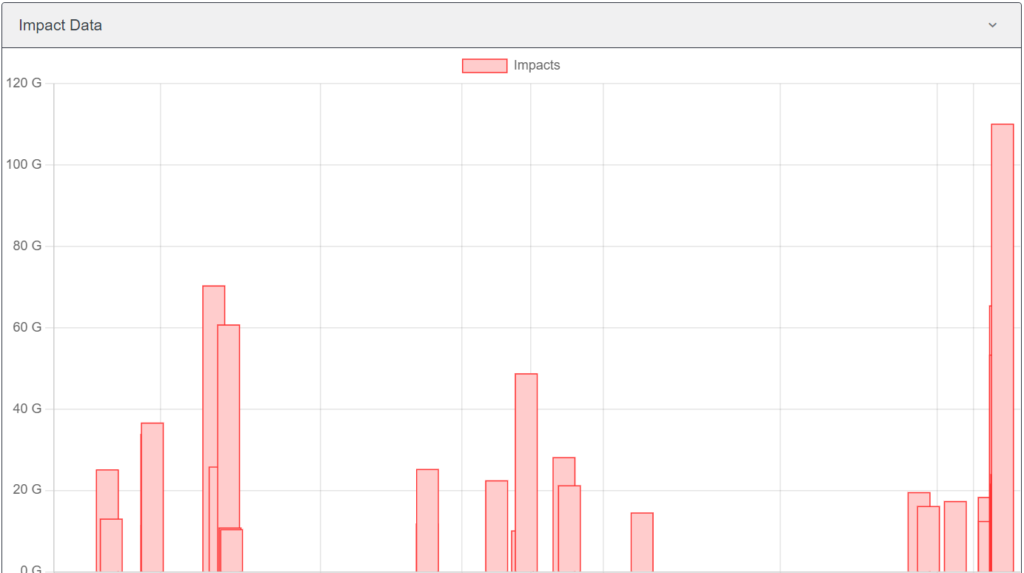

SpotBot cloud dashboard impacts over time graph

SpotBot cloud dashboard impact histogram
