Intelligent Proximity Alert System (IPAS)

The increasing growth in construction has demanded more equipment and even more people into the industry. It has also added more preventable accidents between vehicles and workers.

The ShockWatch Intelligent Proximity Alert System (IPAS) by KIGIS is designed to reduce the risk of workplace collisions, both vehicle-to-vehicle and vehicle-to-pedestrians. IPAS combines the latest ultrawide band (UWB) technology with a highly reliable collision warning in light, sound and voice-alert format. With a dual-zone detection range of up to 30 metres, it’s suitable for all types of heavy machinery and worksites.

High Accuracy

UWB technology-based highly accurate distance measurement

Easy Installation

Out-of-the-box with no-registration and no-calibration

Bilateral Alarm

Acoustic or vibrated alarm for both a driver and a pedestrian

Easy Operation

Simple and customizable configuration and operation

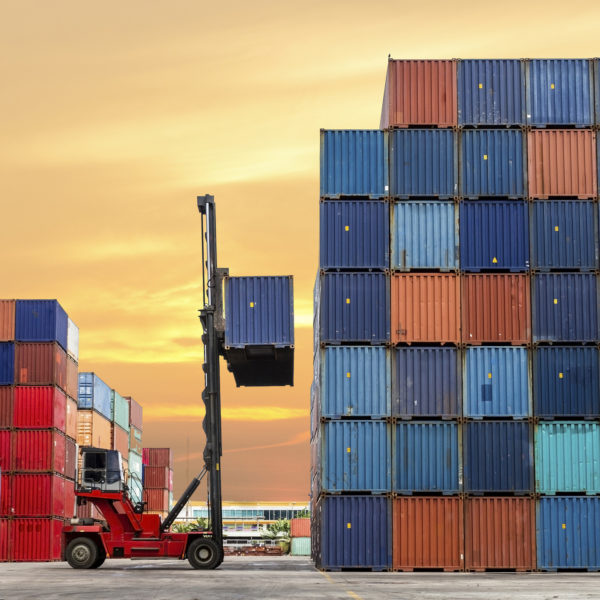

KIGIS Applications - Ports

SYSTEM COMPONENTS

Vehicle Tag (VT)

Installed on top of the vehicle, the Vehicle Tag detects the Pedestrian Tag, another Vehicle Tag (VT), Flashlight Zone Tag (FZT) and the Crossway Zone Tag (CZT) using UWB (Ultrawide Band) Technology.

  • Installation: Exterior
  • Interaction: PT, VT, FZT, CZT
  • Alarm: LED Light with Beep or Voice Alert via the attached Indicator (IND)

Certification Logos FCC CE KC

Indicator (IND)

Installed inside the cabin, the Indicator provides light and voice alert when the Vehicle Tag detects other tags.
This device can be used to configure both warning ranges and volume levels.

  • Installation: Interior (Connected with VT)
  • Range: Configurable up to 30m (Caution/Danger Area of Vehicle Tag)
  • Alarm (Pedestrian / Vehicle):
    Caution Range – Slow Beep or Voice repeating “Watch Out”
    Danger Range – Fast Beep or Voice repeating “Danger”

Certification Logos FCC CE KC

Pedestrian Tag (PT)

When people enter the Caution/Danger Range, the Pedestrian Tag creates both vibration and sound alarm. This device is configurable and rechargeable.

  • Installation: Carried by people (Armband / Helmet Clip / Carabiner)
  • Interaction: VT
  • Alarm: Caution Range – Beep sound, Vibration
  • Danger Range – Siren sound, Vibration
  • Low Battery – Short beep sound – 5 times every 10 minutes

Certification Logos FCC CE KC

Main Operating Characteristics

  • IPAS is applicable to all industrial vehicles: forklifts, loaders, trucks, etc
  • Detection of pedestrians and moving vehicles in the area of operation of vehicles
  • Detection range is adjustable from 1 – 30 metres in ideal conditions
  • System components are all rugged and long-lasting

Optional Accessories

KIGIS IPAS Flashlight Zone Tag - Amber

Flashlight Zone Tag (FZT)

Alert drivers and pedestrians at blind corners or doorways with a flashing light and optional sound.

KIGIS IPAS Zone Tag - Flash Light - Amber - NO LED

Flashlight (FL)

Connect to the Flashlight Zone Tag (FZT) for use on the other side of a doorway or blind corner.

Crossway Zone Tag CZT

Crossway Zone Tag (CZT)

Prevents collisions of vehicles entering an intersection in industrial working sites and manufacturing facilities.

Peripheral Devices

External Output Device (EOD)

Use to trigger a light/buzzer, speed controller or for access control.

IPAS Toolkit

PC Program to adjust settings and for firmware updates for IPAS products.

IPAS Product Video

Specs

Vehicle Tag Specifications
Power
12/24VDC Input (9/32VDC)
Current Consumption
300mA
Interface
CAN Bus 2.0
Dimension / Weight
177.8 x 84.1 x 86mm / 444g
Mount Type
Magnet Mount
Frequency
3993.6MHz
Bandwidth
499.2MHz
Operating Temp / Storage Temp
-30~85ºC / -40~85ºC
Enclosure
IP65



Indicator Specifications
Power
12/24VDC Input (9/32VDC)
Current Consumption
500mA
Interface
CAN Bus 2.0
Dimension (w/bracket) / Weight
93 x 130.5 x 47.5mm / 207g
Mount Type
Screw Fix (or Adhesive Tape)
Frequency
3993.6MHz
Sound Level
92dB @ 0.1m
Operating Temp / Storage Temp
-30~85ºC / -40~85ºC
Enclosure
IP65



Personal Tag (PT) Specifications
Sound Level
87dB @ 0.1m
Battery
Li-Polymer 950mA
Operation Voltage
3.7V
Charge Interface
Micro USB Type-B (5V/1A)
Charging Time / Operation Time
~90min / 6 Days (@8hrs/day)
Dimension / Weight
40 x 72 x 19.5mm / 58.5g
Mount Type
Armband / Helmet Clip
Frequency
3993.6MHz
Bandwidth
499.2MHz
Operating Temp / Storage Temp
-20~55ºC / -20~55ºC
Enclosure
Waterproof





Documents

 Adobe_PDF_file_icon_32x32
IPAS Brochure
