Flex Single Impact Indicator

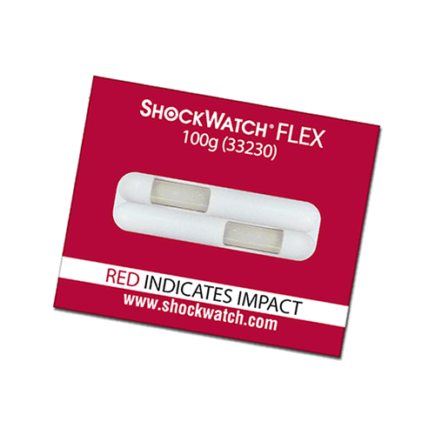

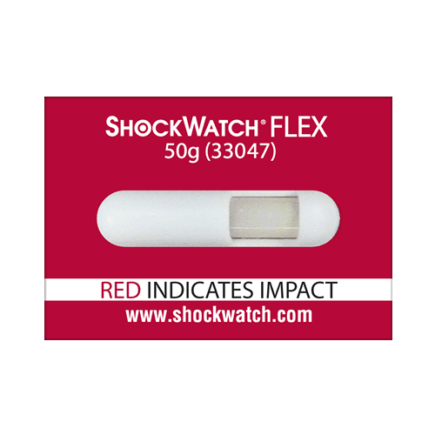

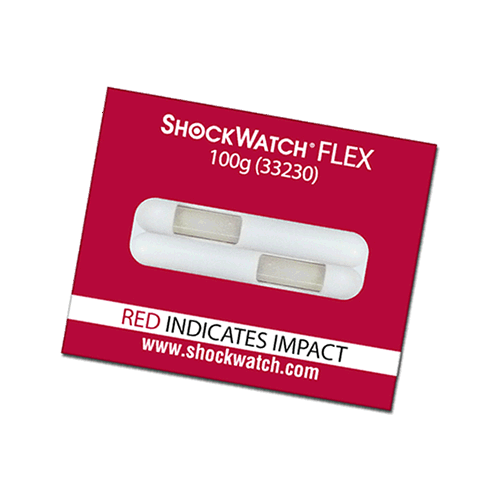

Shockwatch Flex impact indicator

is a flexible impact indicator optimized for mounting to irregular shaped surface ensuring the indicator will stay in place.
The Flex is ideal for monitoring tools or equipment that can become misaligned lose calibration or damaged if mishandled.

They are available in a single and double tube configuration.

Shockwatch Flex impact indicators

are a flexible impact indicator optimized for mounting to an irregular shaped surface ensuring the indicator will stay in place. The Flex is ideal for monitoring tools or equipment that can become misaligned lose calibration or damaged if mishandled.
Shockwatch Flex impact indicators are highly visible, mechanically-activated devices that turn bright red when an impact occurs. These solutions are ideal when you need to know if product mishandling may have resulted in misalignment, loss of product calibration or warranty-related repair issues

The single Shockwatch Flex impact indicators has one tube and will provide nearly 360 degrees of detection. The Shockwatch double Flex impact indicator has two tubes and gives a full 360 degrees of detection. Shockwatch Flex impact indicators are mainly used either embedded or attached to the exterior of hand held and calibrated products.

Lost Calibration for measurement equipment

Products such as measurement equipment, gyroscopes, weaponry or medical devices require precise calibration in order to operate properly. Impacts can result in misalignment of critical components.

Shockwatch Flex impact indicators indicate if an impact has been experienced that could potentially result in misalignment and the need for recalibration.

Warranty Abuse

Most companies offer a warranty period during which non-functioning products are repaired or replaced at no cost to the end user. Service calls involve labour costs of making repairs and overseeing administrative processes, spare parts costs and the costs associated with unhappy customers.

In order to monitor for mishandling, ShockWatch Flex impact indicators can be integrated into or mounted on the product. These devices are excellent tools to improve customer handling and reduce warranty costs associated with mishandling.

Types of products that could be monitored with the Shockwatch Flex impact indicators

  • Hard drives
  • Sensitive electronics
  • Communications equipment
  • Avionics / Gyroscopes
  • Handheld electronic devices
  • Audio visual / Broadcast equipment
  • Medical equipment
  • Laboratory equipment
  • HDTV equipment

Shockwatch Flex Impact Indicators Selection

To select the proper activation levels, determine if shock specifications exist for the product to be monitored. Most complex electro-mechanical products such as hard drives, avionics, analysis instruments, etc. have been through extensive testing to establish shock damage boundary data. If this information is available, the selection process is quite simple. Select the Flex type and sensitivity to match. If it is not available, please use our Shockwatch Clips Selection Guide (see Selection Guide tab) for guidance. Impact / Drop testing  can assist in selecting the most suitable g force.

A Complete Shockwatch Flex Impact Indicator Program

Success of the Shockwatch Program is measured by a reduction in damage. Preventing mishandling is the key to damage reduction.
In order to prevent mishandling, communication with everyone in the supply chain is key. Shockwatch provides letters that you can customise for your carriers and customers. These letters describe the Shockwatch Flex program and detail the steps to follow in the event a shipment is received with an activated Shockwatch Flex.

Our Shockwatch Clips/Flex Damage Prevention Implementation Guide will assist you in setting up a program to deter mishandling and reduce you damage related costs.

Benefits of using ShockWatch Flex impact indicators

Green_tick Acts as a visual deterrent to improper handling Green_tick Promotes chain of accountability for all product handling
Green_tick Reduces mishandling through awareness Green_tick Confirms effectiveness of packaging
Green_tick Provides indisputable evidence of mishandling Green_tick Helps identify trouble spots in supply chain, from production to transportation and storage
Green_tick Alerts recipient to inspect contents before acceptance Green_tick Helps increase quality of product from dock to dock



Specifications

Operating Temperature: -25°C to 80°C
Product Dimensions:
Single Flex:
Double Flex:
32.5mm x 22.9mm
32.5mm x 26.4mm
Sensitivity: 25 to 100G
Guaranteed Activation: +/-15% of nominal value
Responsiveness: Responds to single impact
Duration: Ranges 0.5 to 50 ms
Adhesive: Acrylic
Shelf Life: 2 years when stored at 20°C / 68°F, 1 ATM20°C / 68°F, 1
Storage Recommendations: ATM, 0-99% RH Non-condensing

Selection Guide

Product Name Sensitivity Activation Height
Flex 85 10G 50.8mm to 101.6mm
Flex 75 15G 76.2mm to 152.4mm
Flex 65 25G 101.6mm to 203.2mm
Flex 55 37G 152.4mm to 355.6mm
Flex 47 55G 203.2mm to 457.2mm
Flex 35 75G 482.6mm to 609.6mm

FAQ's

What is a Shockwatch Flex?
A Shockwatch Flex is an Impact Detection device that will activate (turn red) when an impact level exceeds the threshold of the unit.

Where is the Shockwatch Flex mounted?
A Shockwatch Flex is attached to the product itself and indicates excessive impact directly to the product. The Flex indicates whether the protective packaging was enough to absorb the damaging shock.

What can the Shockwatch Flex do for your bottom line?
The Flex can be used to:
Promote Handling Care – Promote care and reduce damage during the manufacturing processes

Aid in Detection of Hidden Damage – for example, Shockwatch Flex are affixed to avionics instrumentation such as gyroscopes. The instrument would not be used, or would be thoroughly checked if it was delivered with the Shockwatch Flex activated. The Flex products are more than damage prevention devices. They are also used for detecting possible damage or de-calibration.

A Quality Control Tool – Many products are received and inventoried for use or distribution at a later date. Hidden damage can lead to shortages, or even to distribution and usage of damaged or faulty products. A quick check of the Shockwatch Flex can reveal the product was subjected to a potentially damaging impact and that further inspection is warranted.

Documents

Adobe_PDF_file_icon_32x32 Shockwatch Clips/Tubes/Flex Brochure
Adobe_PDF_file_icon_32x32 Shockwatch Clips/Tubes/Flex Activation Graphs and Response Curves
Adobe_PDF_file_icon_32x32 Shockwatch Clips/Tubes/Flex Damage Prevention Program Implementation Guide
Word-icon Sample Shockwatch Clips/Tubes/Flex Damage Prevention Program Implementation Letters for Customer and Carrier
